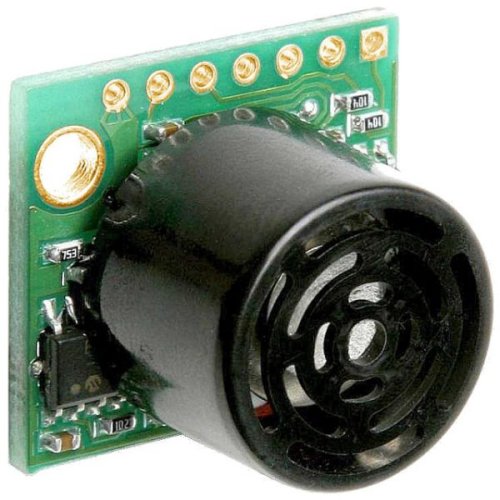

Features of the MB1002, ParkSonar-EZ-84, include one-inch resolution, both proximity and range information for the nearest detectable target, and various output options: high/low logic level and RS232 serial.
The ParkSonar‑EZ line is designed to detect vehicles within a calibrated detection zone. The ParkSonar-EZ proximity sensors report when a vehicle, or other detectable target, enters the detection zone. The target is released after leaving the ParkSonar-EZ’s detection zone.
The MB1002 has a detection zone of ~7 feet. The MB1002 will allow for 14+ simultaneous sensors depending on sensor mounting and environment.
Specifications :
- Resolution of 1 inch
- ~10 second target acquire time*
- ~5 second target release time*
- Automatic multi-sensor operation
- Vehicle Detection Sensor
- Maximum reported range of 254 inches (645 cm)
- Choice of 2 digital outputs: Logic Level (High/Low) and RS232 serial
- 42kHz Ultrasonic sensor measures distance to objects
- RoHS Compliant
- Virtually no sensor dead zone, objects closer than 6 inches typically range as 6 inches
- Operates between 2.5 and 5.5V
- Low 2.0mA average current requirement
- Small, light weight module
- Designed for easy integration into your project or product
- Proximity Detection zone of 7 feet (84 inches)
Documents :
Models with additional chemical resistance are available :
The F-Option (IP68) design modification provides our weather resistant sensors with extra protection against corrosive chemical environments. Ask for the F-Option (IP68) when ordering.
The MaxBotix F-Option (IP68) provides additional protection necessary in a few hazardous chemical environments. Extremely corrosive gases or liquids can degrade or compromise the operation of the sensing unit. As a result, we offer a more chemically inert seal which allows our sensors to operate in all but the harshest of chemical environments. In addition to the chemical resistance, the sensor has improved performance in wet or dust environments.
Please Note: Our sensors are designed for operation in normal atmosphere (air). Please be aware that the speed of sound and atmospheric attenuation may change as a result of the transmission properties of different chemical/air mediums. Users are strongly encouraged to characterize and test the operation of the sensor in the new medium to verify operation, and properly scale the outputted range information.
F-Option
The exposed materials of a properly mounted MaxSonar‑WR sensor with the F-Option (IP68) added are: Aluminum (oxidized surface), PVC, & Fluorosilicone (with an additional back up FEP Teflon® seal).
Standard Weather Resistant Models
The exposed materials of a properly mounted MaxSonar‑WR standard sensor are: Aluminum (oxidized surface), PVC, & silicone rubber (VMQ).
Compatibility
The F‑Option is compatible with the following sensor lines:
- 4-20HR‑MaxSonar‑WR
- 4-20SC‑MaxSonar‑WR
- HRXL‑MaxSonar‑WR
- HRXL‑MaxSonar‑WRS
- SCXL‑MaxSonar‑WR
- SCXL‑MaxSonar‑WRS
- I2CXL‑MaxSonar‑WR
- XL‑MaxSonar‑WR
- Component Overview
- RoHS Compliant
- Fluorosilicone Sealant (with an additional back up FEP Teflon® seal)
P-Option :
Provides a Parylene coating as a barrier to help prevent corrosion of the aluminum transducer.
Shielded Cable Attach :
Comes with 3ft of cable.
Part Numbers :
All part numbers are a combination of a six-character base followed by a dash and a three-digit product code. Please review the following table for more information on the three-digit product code.
Base :
| M B 1 0 0 2 |
Three-digit product code :
| CELL 1 | CELL 2 | CELL 3 |
Example :
| 1 | 0 | 0 |
CELL 1:
Housing Style :
| 0 | Not Applicable |
| 1 | 3/4" NPS WR |
| 2 | 3/4" NPS WRC |
| 3 | Ultra Compact |
| 4 | Ultra Compact Flush Mount |
| 5 | 1" NPS |
| 6 | 1" BSPP |
| 7 | 30MM 1.5 |
| 8 | Extended Horn |
CELL 2 :
Options Selected :
| 0 | No Options(Bagged) |
| 1 | F-Option |
| 2 | P-Option |
| 3 | F-Option and P-Option |
| 4 | No Options(Trayed) |
| 5 | TTL(Bagged) |
| 6 | TTL(Trayed) |
CELL 3 :
Wire Attach :
| 0 | No Wire Attach |
| 1 | Wire Attached |
The following table displays all of the active and valid part numbers for this product.
Active Part Numbers :
MB1002 - 000
MB1002 - 040
Package Includes :
1 x Maxbotix MB1002 ParkSonar-EZ-84 - High Performance Proximity Detection Sensor
Maxbotix MB1002 - 000 ParkSonar-EZ-84 - High Performance Proximity Detection Sensor
- Brand: Maxbotix
- Product Code:Maxbotix-MB1002-ParkSonar
- Reward Points:45
- Availability:In Stock
-
रo 4,456.00
- Price in reward points:4456
-
- 3 or more रo 4,420.00
- 7 or more रo 4,385.00
- 15 or more रo 4,349.00
- 35 or more रo 4,313.00
