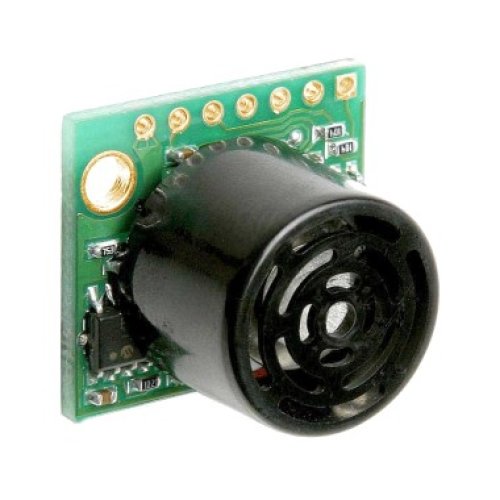

• Maxbotix LV-MaxSonar-EZ0 High Performance Sonar Module (MB1000)

Specifications :

  • Ranges from 6" to 254" (6.45m)
  • Serial (0-5V), Analog Voltage or Pulse Width interfaces
  • 2.5cm (1") Resolution
  • Dimensions: 22.1x19.9x16.4 mm (the smallest on the market)
The new and improved Maxbotix LV-MaxSonar-EZ0 Sonar Module detects objects from 0 to 254 inches (6.45 meters) and provides sonar range information from 6 to 254 inches with a 1 inch resolution. Objects between 0-inches and 6-inches range as 6-inches. The new LV version offers better low voltage compatibility for those using 3.3V (2.5 to 5.5V) in their systems.

The LV-MaxSonar-EZ0 offers very short to long-range detection and ranging, in an incredibly small package with ultra low power consumption. The interface output formats included are pulse width output, analog voltage output, and asynchronous serial digital output.


Maxbotix LV-MaxSonar-EZ0 High Performance Sonar Module










The LV-MaxSonar-EZ0 features:

• The lowest power consumption
• Superior beam shape
• Stable Range Readings
• No central blind spot
• The smallest PCB
• Mounting holes
• Detects objects from 0 to 254 inches (6.45 meters)
• Provides range of objects from 6 to 254 inches (6.45 meters)
• Serial (0-5V), Analog voltage or PW output
• 42 KHz ultrasonic ping
• Free run or trigger operation
• Worldwide patents pending


Maxbotix LV-MaxSonar-EZ0 High Performance Sonar Module


Useful Links:
  • PDF Files

Write a review

Please login or register to review

Maxbotix LV-MaxSonar-EZ0 High Performance Sonar Module (MB1000)

  • Brand: Maxbotix
  • Product Code:MaxBotix-LV-MaxSonar-EZ0-HighPerformance-Sonar-Module
  • Reward Points:24
  • Availability:Order now and get it in 15 days
  • रo 2,355.00

  • Price in reward points:2355

  • 5 or more रo 2,336.00
  • 15 or more रo 2,318.00
  • 30 or more रo 2,299.00
  • 60 or more रo 2,280.00
