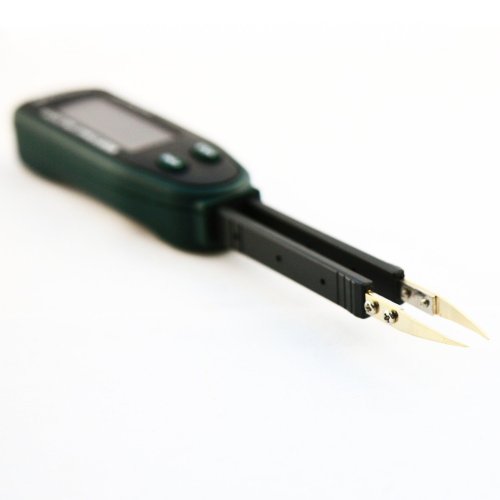

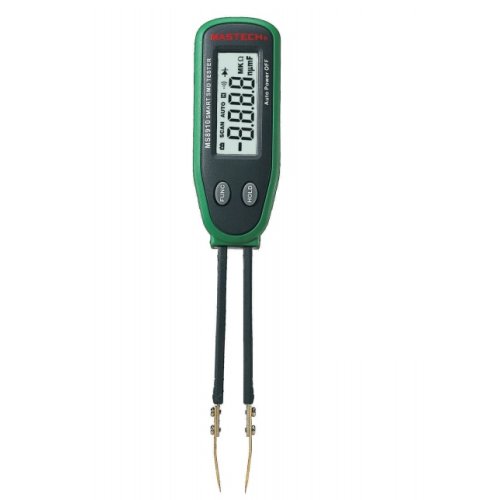

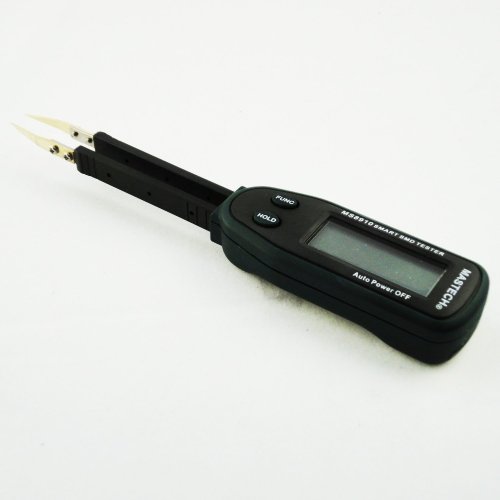

The MS8910 helps evaluating loose components and to perform on-board measurements. Precise tips made of non-magnetic steel reliably contact the smallest SMD components and take measurements from the device mounted on a board. It can also be used to test conventional components with short wire leads.The  two testing pins are gold-plated, so that it is reduce pin contact resistance and prevent to get rusty.

Features:

  • 6-range Resistance measurement from the lowest 0 to 300 ohms to the highest 0 to 30 Mohms
  • 8-range capacitance measurement from the lowest 0 to 3 nF to the highest 0 to 30 mF
  • Diode check, Continuity test , 3000 counts LCD display •Full automatic measurement
  • Data hold

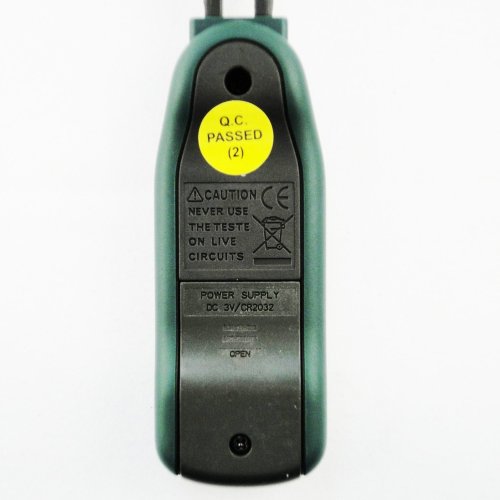

  • Free replace test pins; 2 units of CR2032 Battery; Plastic carrying case

User Manual

Write a review

Please login or register to review

Mastech MS8910 Smart SMD Tweezer

  • Product Code:Amz-Tester-SMD-MS8910
  • Reward Points:20
  • Availability:In Stock
  • रo 2,011.00

  • Price in reward points:2011
