- ATmega328 Microcontrolle
- Arduino UNO bootloader
- 14 Digital I/O Pins (6 PWM outputs)
- 6 Analog Inputs
- ISP Header
- Arduino UNO-R3 Shield Compatible
- Micro USB programming and power supply
- DC Current per I/O Pin: 40 mA
- DC Jack Input: 7v-15v
- Flash Memory: 32 KB
- RAM: 2 KB
- EEPROM: 1 KB
- Clock Speed: 16 MHz
- Dimension: 68mm x53mm x 11mm
- 1 x Maduino UNO
- 1 x Micro USB Cable

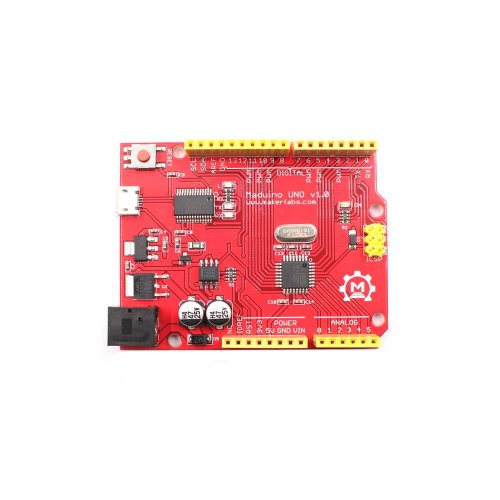

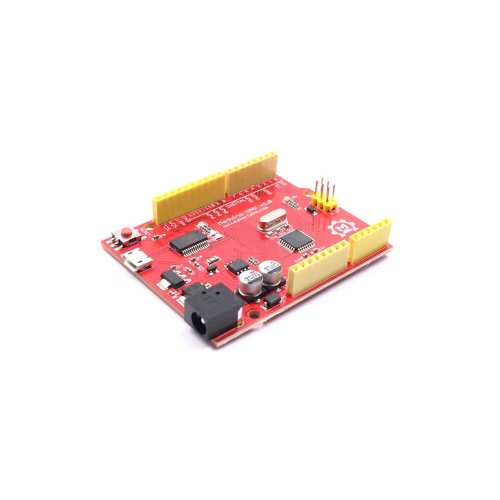

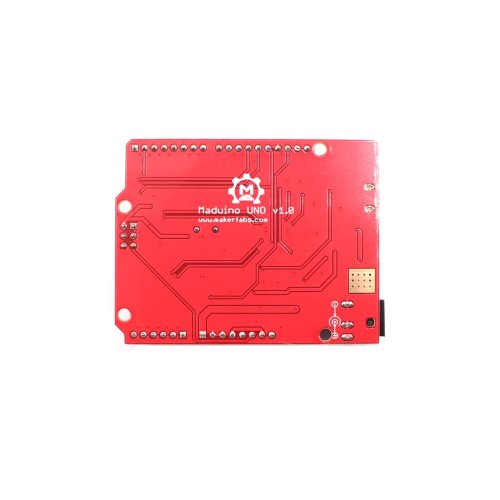

Makerfabs Maduino UNO
- Brand: Makerfabs
- Product Code:NR-MakeF-Maduino-UNO
- Reward Points:15
- Availability:In Stock
-
रo 1,562.00
- Price in reward points:1562
-
- 5 or more रo 1,473.00
- 10 or more रo 1,461.00
- 20 or more रo 1,449.00
- 51 or more रo 1,438.00
- 101 or more रo 1,390.00
