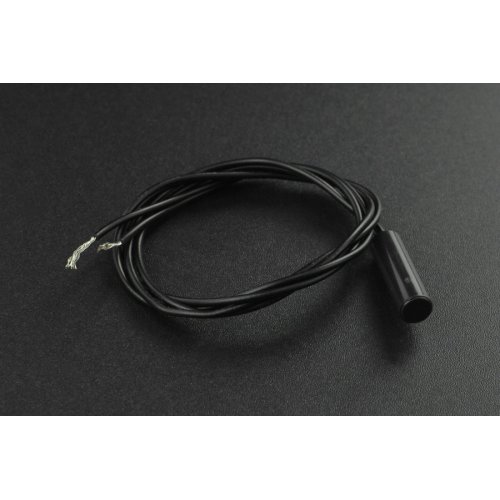

• Magnetic Contact Switch Sensor for Arduino

This magnetic switch (reed switch) consists of two magnetic reeds (usually composed of iron and nickel) sealed in a plastic case. The two magnetic reeds are overlapped but there is a small gap between them. When a suitable external magnetic field comes within 2cm, the two magnetic reeds will contact and conduct, thereby sensing the change in the position of the object.

This magnetic control switch has a compact structure and a small weight, which can be installed in a limited space, and is extremely suitable for using in miniaturized equipment. The switching elements of the reed switch are hermetically sealed in an inert gas atmosphere so that they are never exposed to the external environment and feature a long service life. The switch can be widely used in door/window position limiting device, proximity switches, measuring instruments, automation/security/transportation equipment, smart homes, etc.

Features:

  • Compact structure and small weight
  • Long service life
  • Wide voltage operating range
Specifications:
  • Operating Voltage: 0~100V
  • Operating Principle: magnetic sensor
  • Output Signal: switching value signal
  • Size: 6x20x350 mm / 0.24x0.79x13.78 inches
  • Color: black

Documents:

Warranty: 90 days

  • Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

  • 1 x Magnetic Contact Switch Sensor for Arduino

Write a review

Please login or register to review

Magnetic Contact Switch Sensor for Arduino

  • Brand: DFRobot
  • Product Code:DFR-Contact-Switch
  • Reward Points:4
  • Availability:In Stock
  • रo 386.00
  • रo 335.00

  • Price in reward points:398

  • 35 or more रo 384.00
  • 70 or more रo 383.00
  • 180 or more रo 372.00
