The LM148, LM248, and LM348 are quadruple, independent, high-gain, internally compensated operational amplifiers designed to have operating characteristics similar to the µA741
Features and Specifications:
- Mounting Style: Through Hole
- Package / Case: PDIP-14
- Supply Voltage - Max: 36 V
- Output Current per Channel: 25 mA
- Number of Channels: 4 Channel
- GBP - Gain Bandwidth Product: 1 MHz
- SR - Slew Rate: 0.5 V/us
- CMRR - Common Mode Rejection Ratio: 70 dB
- Ib - Input Bias Current: 200 nA
- Vos - Input Offset Voltage: 6 mV
- Supply Voltage - Min: 8 V
- Operating Supply Current: 2.4 mA
- Maximum Operating Temperature: + 70 C
- Minimum Operating Temperature: 0 C
- Shutdown: No Shutdown
- Series: LM348
- Packaging: Tube
- Amplifier Type: High Gain Amplifier
- Brand: Texas Instruments
- Dual Supply Voltage: +/- 5 V, +/- 9 V, +/- 12 V, +/- 15 V
- en - Input Voltage Noise Density: 60 nV/sqrt Hz
- Height: 4.57 mm
- In - Input Noise Current Density: 0.52 pA/sqrt Hz
- Length: 19.3 mm
- Maximum Dual Supply Voltage: +/- 18 V
- Minimum Dual Supply Voltage: +/- 4 V
- Operating Supply Voltage: +/- 4 V to +/- 18 V
- Pd - Power Dissipation: 750 mW
- Product: Operational Amplifiers
- Factory Pack Quantity: 25
- Supply Type: Dual
- Technology: Bipolar
- Vcm - Common Mode Voltage: Negative Rail + 3 V to Positive Rail - 3 V
- Voltage Gain dB: 104.08 dB
- Width: 6.35 mm
- Unit Weight: 0.032734 oz

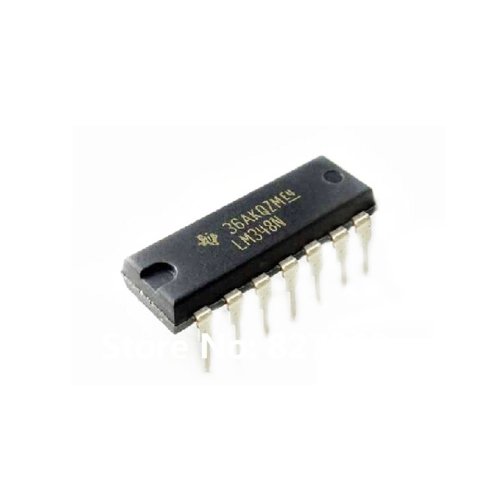

LM348N Quad Op-Amp
- Product Code:PRC-Op-Amp-LM348N
- Reward Points:1
- Availability:In Stock
-
रo 48.00
- Price in reward points:48
