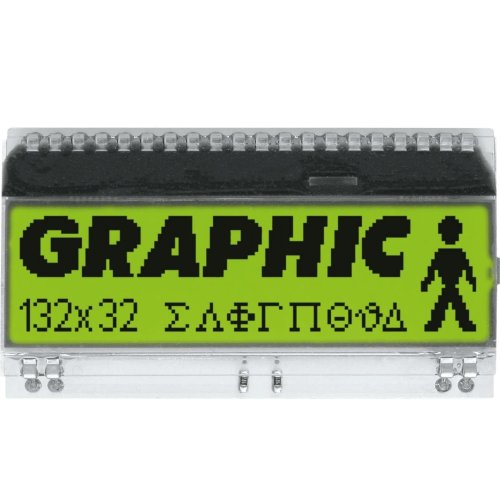

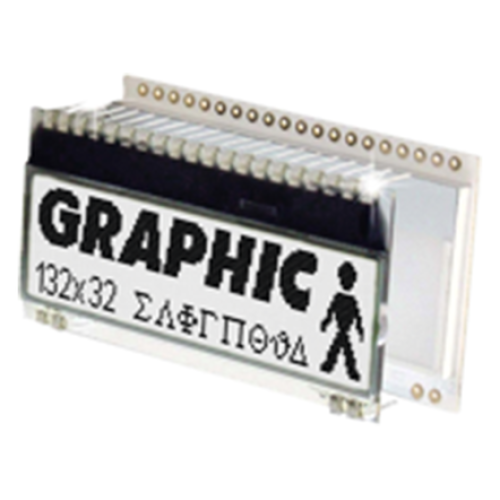

LCM Graphic 132x32/STN Yellow/Green Pos Reflective/Black Negative Transmissive

Right thanks to this unique possibility to make your own combination display + backlight according to your needs make the EADOG series so versatile.

Features

• 1x8 - 2x16 - 3x16 for +5V or +3.3V power supply
• 4x10/2x10 - 4x20 for +3.3V
• Graphic 102x32 .. 240x128 for +3.3V

Character displays are with the SPI interface, some are also with I2C, and 4/8 bit. Simple 3,3V or 5V power supply further simplifies their usage. In the EADOG family can be found „S“, „M“, „L“ and „XL“ series (EADOGS, EADOGM,...). The smallest one - EADOGS is suitable even for miniature applications, where a place is precious, but still a display is desirable or necessary there. On stock we keep three graphic versions 102*64 px with 33,6*23,4 mm active area. The newest member in the family of these small displays is the EA DOGS104-A character display (4x10 with a small font or 2x10 with a big font), while the character height may be changed by software. EA DOGS104-A is in standard equipped with 3 character sets (EN, EU, cyrilic).

Specifications:

Yellow/Green:

Datasheet

Image is just for reference actual will be with respect to specifications.
