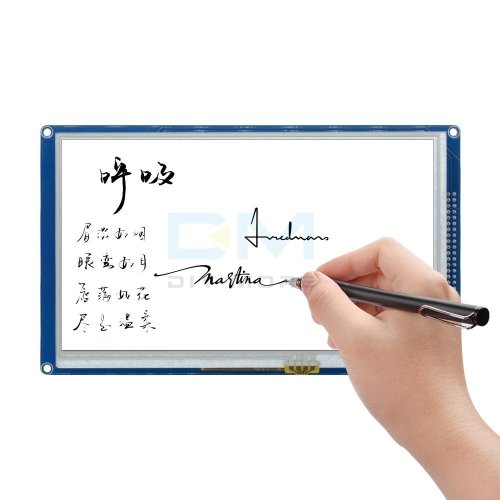

This 7.0" TFT LCD Module can be easy controlled by MCU such as 8051, PIC, AVR, ARDUINO, and ARM .It can be used in any embedded systems which require display high quality colorful image. The Module used SSD1963 LCD controller with 5 inch LCD module with touchpad. This LCD has a superior display quality and super wide viewing angle. The LCD has a SD slot, SPI flash footprint.
Features
- 7.0" TFT LCD Module
- Resolution 800x480
- SSD1963 Controller
- LCD Type: TFT Transmissive Normal White
- Interface: 8/16bit parallel bus interface
- On board 400mA
- Module dimension: 186mmx106mmx23mm(including pin header extrusion)
- Pixel pitch: 0.179mmx0.179mm
- Standard 2x20 2.54mm pin header for connection to MCU/development board
TFT 7
- Product Code:PRC-LCD-Display-Touch-7-inch-SSD1963
- Reward Points:53
- Availability:Out Of Stock
- रo 4,560.00
-
रo 4,370.00
- Price in reward points:5250
