Due to Intel's capacity problems, the supply of Alpha's CPU M3-7y30 will face a continuous shortage. To solve the problem, LattePanda team updated its CPU to Intel 8th M3-8100y, correspondingly, Alpha 800 models will be upgraded to Alpha 800s. It will improve the whole performance 30% on the basis of previous 7th M3-7y30 version.

Alpha Edition - Generally refers to the leader in a wolf pack, α / Alpha. It will also be the leader in the LattePanda series, the most powerful in performance. Known as the leader of the Pandas, or "AlphaPanda" for short.

The Alpha Edition uses the same Intel 7th generation Core m3 processor as the latest MacBook. The Core m3 processor is the perfect choice for superior performance and low power consumption.

We have shrunken this computing monster from a laptop to the size of a phone.

We are shipping Windows 10 Pro this time but we have also added Linux Compatibility, Windows and Linux dual OS support. Because we saw the different needs of users from our 1st Gen products.

The Streaming Cable enables your Windows-enabled LattePanda device to act like a USB on a Mac or Linux system. Just plug & play into your Apple/Linux device! The PiP (Picture in Picture) form also eliminates the switching/use of dual mouse and HDMI to connect different systems for seamless interaction of two different systems.

Features:

Solid Spec and Extreme Design
Dual OS Support – Windows / Linux Both
Ultimate Networking on Cloud and Things
Up to 42 Extendable Interfaces bring Rich Playabilities
Ultra-Thin Design, Minimizing Space Occupation
Rebuild How to Code Efficiently with Multiple OS

Comparision:

LattePanda Alpha 800s

CPU: Intel Core M3-8100Y
Core: 2
Memory: 8 GB
Storage : 0
Operating System: N/A

LattePanda Alpha 864s

CPU: Intel Core M3-8100Y
Core: 2
Memory: 8 GB
Storage : 64 GB
Operating System: N/A

LattePanda 2 Alpha 864s (Win10 Pro activated)

CPU: Intel Core M3-8100Y
Core: 2
Memory: 8 GB
Storage : 64 GB
Operating System:Win10 Pro activated

Specifications:

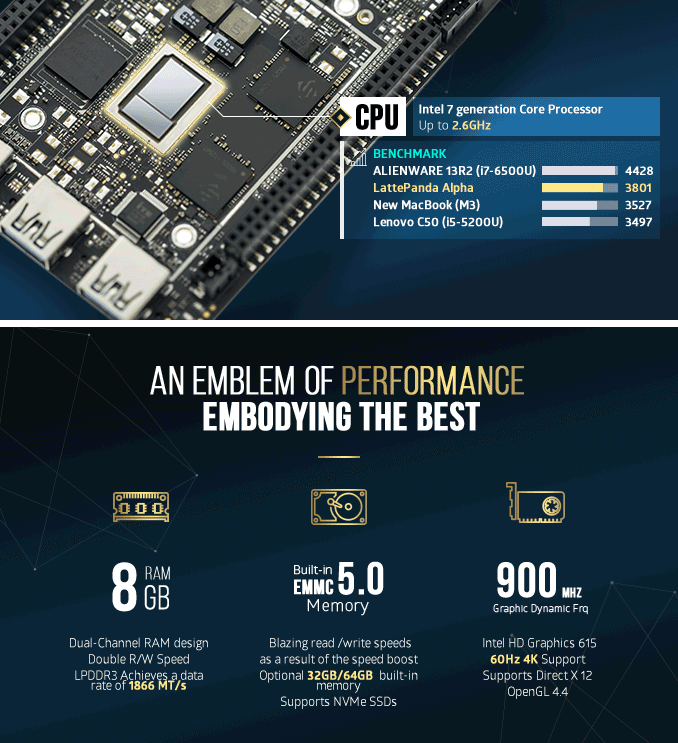

CPU：Intel 8th Gen Core m3-8100y
Core：1.6-2.6GHz Dual-Core，Four-Thread
Benchmark (PassMark): Up to 3500, double computing power compared with same price range products in the market
Graphics：Intel HD Graphics 615, 300-900MHz
RAM：8G LPDDR3 1866MHz Dual-Channel

External Memory：
- 1x M.2 M Key, PCIe 4x, Supports NVMe SSD and SATA SSD
- 1x M.2 E Key, PCIe 2x，Supports USB2.0, UART, PCM
Connectivity：
- Gigabyte Ethernet
- Dual Band Bluetooth 4.2
- WIFI 802.11 AC, 2.4G & 5G
USB Ports：
- 1x USB Type C, supports PD, DP, USB 3.0
- 3x USB 3.0 Type A
Display：
- HDMI Output
- Type-C DP Support
- Extendable eDP touch displays
Co-processor：Arduino Leonardo
GPIO & Other Features：2x 50p GPIOs including I2C, I2S, USB, RS232, UART, RTC，Power Management，Extendable power button，everything you need

OS Support：

Windows 10 Pro
Linux Ubuntu

Documents:

Warranty: 90 days

Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

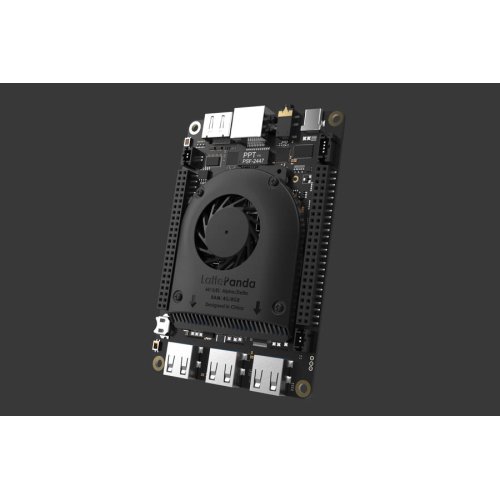

1 x LattePanda Alpha 800s
1 x Active cooling fan (Assembled)
1 x 45w PD Power adapter (with EU & US standard power cord)
2 x Dual-band antenna
1 x RTC Battery (Assembled）
1 x User Manual

Processor Specifications
Processor	Intel 8th Gen Core m3-8100y
Operating System (OS)	Windows 10 Pro, Linux Ubuntu
Number of Cores	Dual-Core
Speed	1.6-2.6GHz
Board Specifications
GPIO	2x 50p GPIOs
Memory Specifications
RAM	8G LPDDR3 1866MHz Dual-Channel
Connectivity
Wi-Fi	802.11 AC, 2.4G & 5G
USB	1x USB Type C, supports PD, DP, USB 3.0, 3x USB 3.0 Type A
Bluetooth	Dual Band Bluetooth 4.2
Ethernet	Gigabyte Ethernet
Additional Information
Warranty	90 days
