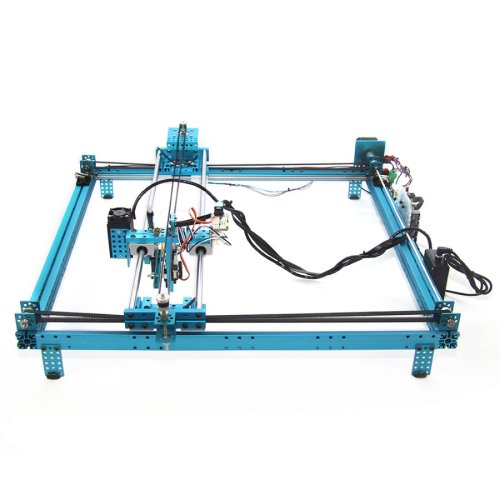

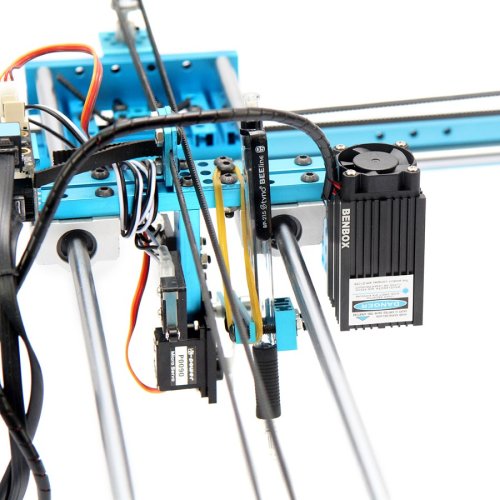

Laser Engraver Upgrade Pack is for XY Plotter Robot Kit V2.0, it can engrave by laser.



Note: The higher output power of the laser, the better processing capacity it is. The 500mW laser engraver can do better engraving and cutting ability, it takes less time and more efficient than the 250mW laser engraving.

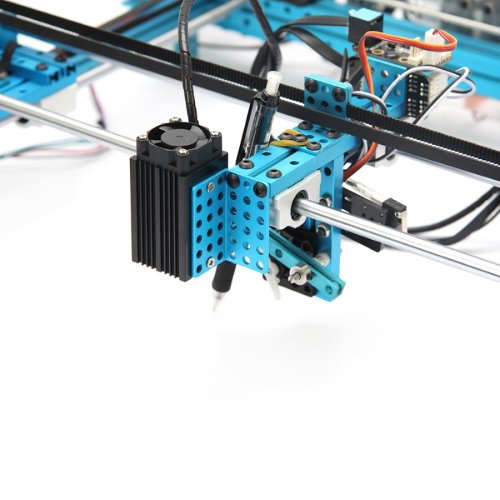

Follow the instruction, assemble the lasers elements to the assembled XY Plotter Robot Kit V2.0 and upload the firmware to the Me Baseboard. You can use Benbox Laser Engraver to control the laser engraver robot to engrave fabulous artworks.

For reference check video below:





Wavelength γ= 405nm Blue-Violet Laser 450~500mW semiconductor diode lasers elements

Working area: 300mm×350mm

Engrave accuracy:0.1mm



Suggested material:

1. Suggested engrave material: wood board, colorful paper cards, dark opaque acrylic, etc.

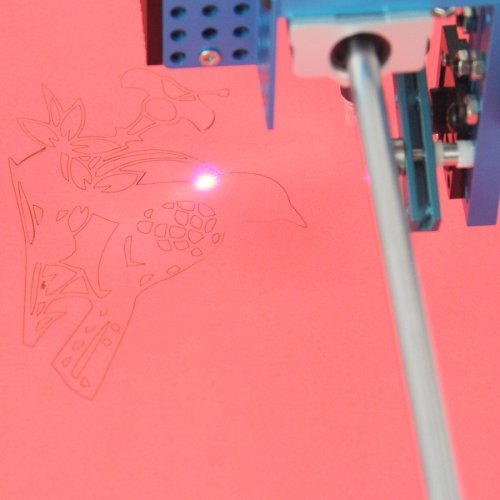

2. Suggested cutter material: colorful paper cards, foam papers, etc.

Usage:



For the places required engraving or cutter such as familes, hackerspaces, schools, companies, etc.

Minimum age:18 ages. Under the age of 18, please use under the care of their parents



Security:



Pay attention when you’re operating the blue-violet laser MAKE SURE you’re wearing the goggles to avoid the dangers.





Additional accessories:

1. A pair of blue-violet laser goggles
2. Several colorful paper cards

Specification:

• Frame: Anodized aluminum
• Physical Dimensions(L×W×H): 620mm × 620mm×140mm
• Engrave materials: Wood boards, colorful paper cards, dark opaque acrylic, foam papers, etc.
• Cutting materials: Colorful paper cards, foam papers, etc.
• Working area (X×Y): 300mm×350mm
• XY Resolution: 0.1mm
• Max Speed: 50mm/s
• Power: 100-240 V~50/60Hz AC/DC Power adapter, 12V/2.0A

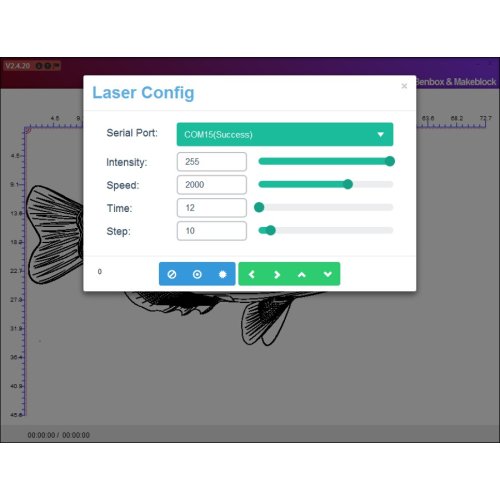

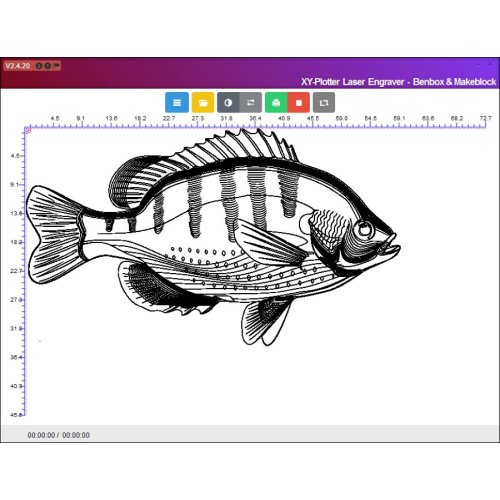

• Software:Benbox Laser Engraver
• Supports file type: JPG，PNG，BMP，GIF，DXF
• Connections: USB
• Electronics: Makeblock Me_baseboard

Useful Link:

Instruction of Laser Engraver Upgrade Pack

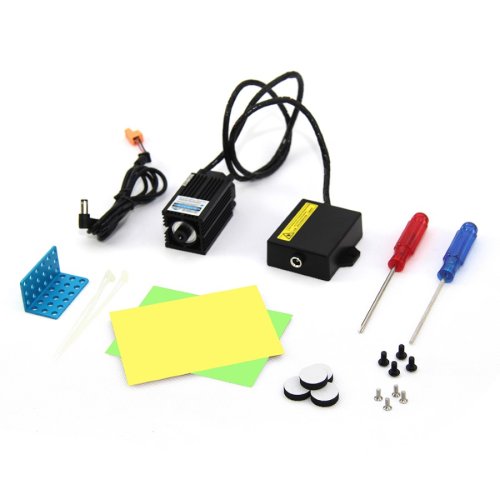

 Parts List:

• 1 × Bracket 3x6
• 1 × HEX Screwdriver 2.5mm
• 1 × Cross Screwdriver 3mm
• 4 × Socket Cap Screw M4x8-Botton Head
• 4 × Countersunk Screw M3x8
• 5 × Nylon Cable Ties
• 1 × Motor Cable Jeck plug

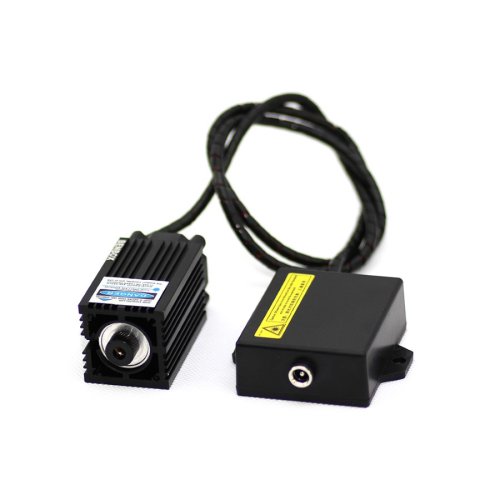

• 1 × 450-5000mW blue-violet Laser Components
• 1 × DC power cord 5.5*2.1MM
• 4 × Foot pads
