MiniQ 4WD mobile platform is especially designed for education/learning purposes. It comes fully assembled and all your need is a PC with Arduino IDE and 4xAA battery. This alternative version of MiniQ 4WD robot provides higher ground clearance (25mm instead of 9mm), bigger approach angle and improved off-road capability in complex terrains. The mobile robot comes with Arduino Leonardo controller (ATmega32u4) and also integrates modules such as RGB LED, photosensitive diode, infrared trasmitters, infrared receivers, light sensors, additional buttons and buzzer.
Features:
- Improved off-road capability on a compact, flexible mobile robot platform
- Micro USB for download the code(bootloader: Leonardo)
- WS2812 RGB LED for controlling the color by only one pin
- Soft buttons for giving you more comfortable feeling
- Two Infrared transmitters and 1 infrared receiver for obstacle detection and avoidance. Also includes an IR remote control to easily control its features remotely
Specifications:
- Controller: Atmega32U4 (Arduino Leonardo)
- Power Supply: 4x AA batteries or Micro-USB
- Working Voltage: 4.5 to 6V
- Driving Mode: 4WD
- Max Speed: 79cm/s
- Size: 115x110x45mm(4.53x4.33x1.77")
Documents:
Package Includes:
- 1 x MiniQ 4WD Cross Country
- 1 x IR remote controller
- 1 x Micro USB Cable

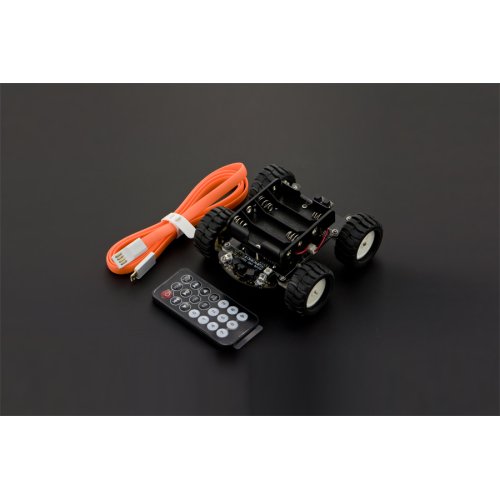

MiniQ 4WD Cross Country Mobile Robot for Arduino
- Brand: DFRobot
- Product Code:DFR-MiniQ-4WD-Robot
- Reward Points:100
- Availability:In Stock
- रo 9,643.00
-
रo 8,368.00
- Price in reward points:9962
-
- 2 or more रo 9,603.00
- 3 or more रo 9,563.00
- 7 or more रo 9,311.00
