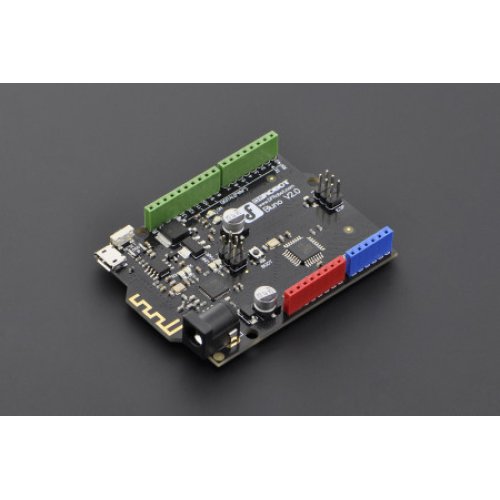

It's time to get Bluetooth 4.0 into your project and sync it up with your phone! For aficionados of smart devices and wearables with this new tech (BT4.0, BLE), now you can go further than hacking things apart to start prototyping with your Arduino. As a member of the Bluno Family, Bluno is first of its kind in intergrating BT 4.0 (BLE) module into Arduino Uno, making it an ideal prototyping platform for both software and hardware developers to go BLE. You will be able to develop your own smart bracelet , smart pedometer and more. Through the low-power Bluetooth 4.0 technology, real-time low energy communication can be made really easy.

Note on Compatibility: Bluno Family does not support other brand BLE devices since the different Bluetooth profile. Read more in wiki.

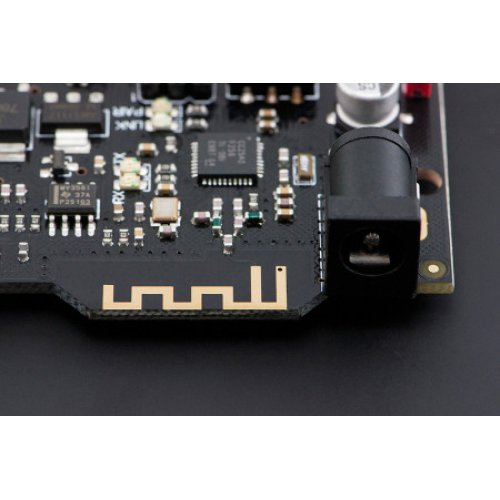

Bluno integrates a TI CC2540 BT 4.0 chip with the Arduino UNO development board. It allows wireless programming via BLE, supports Bluetooth HID, AT command to config BLE and you can upgrade BLE firmware easily. Bluno is also compatible with all Arduino Uno pins which means any project made with Uno can directly go wireless!

What's more, we also developed an App for Bluno (both Android and IOS) and they are completely opensource. You can modify and develop your own BLE-hardware platform. Below is a quick demo video covering some of the major features of Bluno with the help of an Accessory Shield for Bluno, which will also be available very soon.

SPECIFICATION

On-board BLE chip: TI CC2540
Wireless Programming via BLE
Support Bluetooth HID
Support AT command to config the BLE
Transparent communication through Serial
Upgrade BLE firmware easily
DC Supply: USB Powered or External 7V~12V DC
Microcontroller: Atmega328
Bootloader: Arduino Uno ( disconnect any BLE device before uploading a new sketch )
Compatible with the Arduino Uno pin mapping

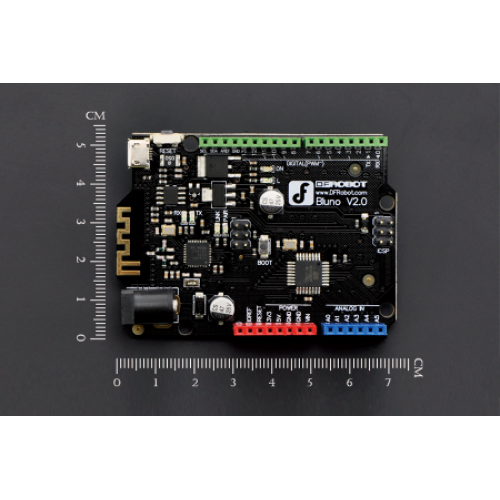

Size: 60mm * 53mm(2.36"*2.08")
Weight: 30g
