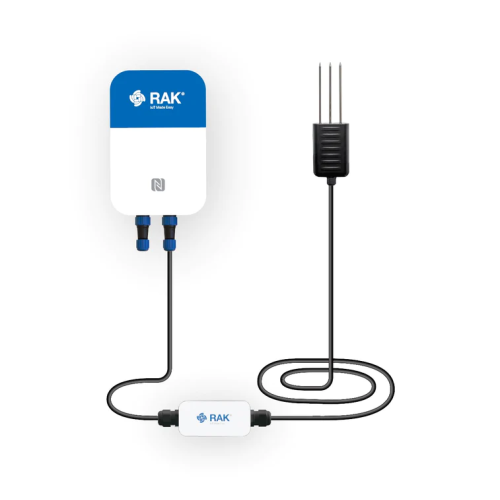

Sensor Hub Soil Monitoring is a solution that helps monitor critical soil parameters such as soil moisture, temperature, and electrical conductivity.
- The sensor Is high quality and has stainless steel probes that have a long life when buried directly in the soil. It has built-in temperature compensation for accurate measurements.
- Suitable for use in agriculture, irrigation, greenhouse, grass farming, water conservation, soil testing, and more.
- Multiple soil monitoring sensors with different probes IO can be connected to a single sensor hub to vertically monitor parameters in different soil layers. The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the Extension cable.
Features
- LoRaWAN/NB-IoT communication
- IP68 protection
- Long life in the soil
- External DC power supply (optional)
- Solar panel power source (optional)
Measure item | Range | Accuracy |
Soil moisture | 0~100% (m3/m3) | ±2% (0-50%) |
±3% (51-100%) | ||
Soil temperature | -30~+70℃ | ±0.5℃ |
Electrical conductivity | 0~10mS/cm | ±3%FS |
Documentation
- Sensor Hub Datasheet
- Sensor Probe IO Datasheet
- Quick Start Guide
- Installation Guide
Package Includes:
- 1 x Sensor Hub
- 1 x Senor Probe IO
- 1 x Soil Sensor
- 1 x Power supply for the Sensor Hub
Soil Monitoring - LoRaWAN Soil Moisture Sensor
- Brand: Rakwireless
- Product Code:NR-RAK-Soil-Monitoring
- Reward Points:300
- Availability:In Stock
-
रo 29,560.00
- Price in reward points:30040
-
- 2 or more रo 29,320.00
- 5 or more रo 29,080.00
