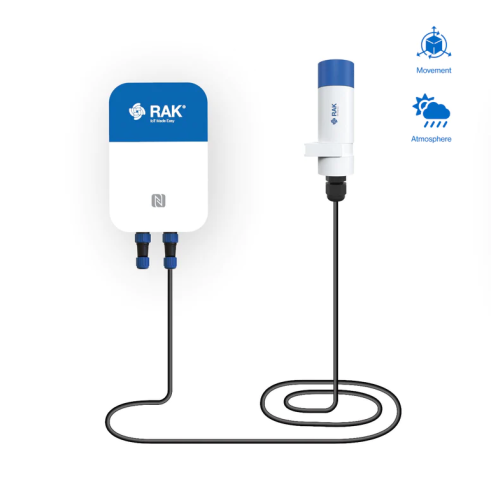

The Sensor Hub atmospheric monitoring and movement detection solution includes a combination of the popular RAK1902 Barometer Presure Sensor and the RAK1904 3-axis Acceleration Sensor inside the Sensor Probe. Their low power consumption and accurate data-gathering abilities allow you to create an atmospheric monitoring system that is also movement sensitive.
- The Splitter cable can connect several Sensor Probes and Probe IOs to a single Sensor Hub port. The distance between the Sensor Hub and Sensor Probe/Probe IO can be extended via the Extension cable.
- The product can be used in any use case where those parameters are of importance. For example in areas where atmospheric measurements are required but the strong wind may cause displacement of the equipment (weather stations in rough environments).
- The 3-axis accelerometer can double as an anti-theft measure for your solution as well.
Note: Sensor Hub with Senor Probe can work with 2 to 4 batteries only. To use the Probe IO with Sensor Hub you need to power it with the designated power adapter. The power adapter can be selected from the check to include section.
Features:
- LoRaWAN/NB-IoT communication
- External DC power supply (optional)
- Solar panel power source (optional)
- Auto-identification of the sensor type
- One-wire protocol
- Waterproof (IP67-rated for the probe body)
Parameter | Value |
User-selectable scales | ±2g/±4g/±8g/±16g |
Data acquisition rate | 1 Hz to 5.3 kHz |
Pressure range | 260-1260 hPa |
Pressure accuracy | ±0.1 hPa |
Temperature range | -40 °C to +85 °C |
Temperature accuracy | ±1.5 °C |
Documentations:
- Sensor Hub Datasheet
- Sensor Probe Datasheet
- Quick Start Guide
- Installation Guide
- WisBlock Barometer Pressure Sensor
- WisBlock 3-axis Acceleration Sensor
Package Includes:
- 1 x Sensor Hub
- 1 x Sensor Probe PR3X (Barometric Pressure and 3-axis Accelerometer)
RAKwireless Atmospheric Monitoring + Movement Detection
- Brand: Rakwireless
- Product Code:NR-RAK-Atmospheric-Monitoring-Movement-Detection
- Reward Points:192
- Availability:In Stock
-
रo 19,040.00
- Price in reward points:19190
-
- 2 or more रo 18,890.00
- 4 or more रo 18,730.00
- 8 or more रo 18,580.00
