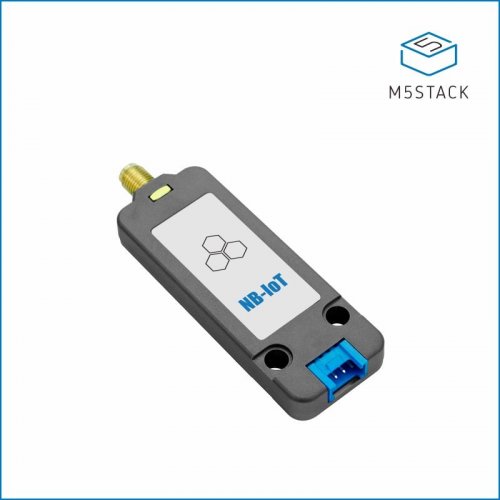

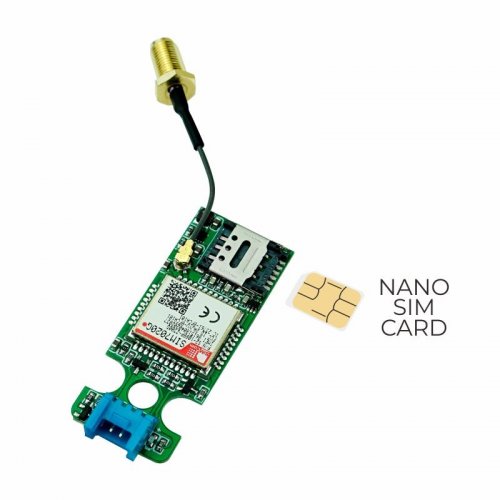

Unit NB-IoT The NB-IoT wireless communication module applicable to the global range Cat-NB frequency band. Built-in SIM7020G communication module, using serial communication (AT command set control), integrated SMA external antenna interface, improving the device communication quality and signal stability, SIM7020G module is the best low-latency, low-throughput application The excellent solution is very suitable for IoT applications such as metering, remote control, asset tracking, remote monitoring, telemedicine, and shared bicycles.

Features:

  • Global version/multi-band support
  • Strong signal access capability
  • AT command control
  • SIM card type: Nano
  • External antenna: SMA antenna
  • Serial communication: UART 115200bps
  • Cat-NB frequency band: B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B26/B28/ B66/B70/B71/B85
  • Data transmission (kbps): 126(DL)/150(UL)
  • Network protocol: -TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/NTP/ PING/LWM2M/COAP/ MQTT/MQTTS

Specifications:

  • Module: SIM7020G
  • Support Cat-NB frequency band: B1/B2/B3/B4/B5/B8/ B12/B13/B17/B18/B19/ B20/B25/B26/B28/ B66/B70/B71/B85
  • Network protocol: TCP/UDP/HTTP/HTTPS/ TLS/DTLS/DNS/NTP/ PING/LWM2M/COAP/ MQTT/MQTTS
  • communication: UART 115200bps
  • Net weight: 12.8g
  • Gross weight: 55g
  • Product Size: 71.5x24x8mm
  • Package Size: 95x65x25mm

Applications:

  • Smart meter
  • Remote monitoring
  • Shared bicycles

Documents:

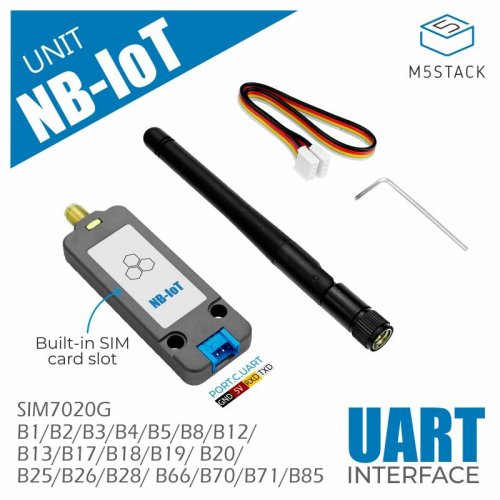

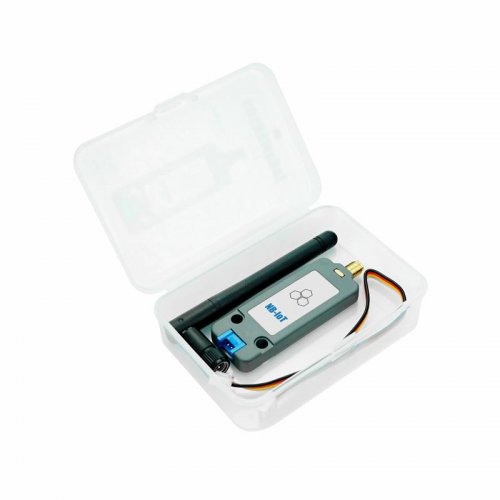

Package Includes:

  • 1 x Unit NB-IoT
  • 1 x SMA antenna
  • 1 x hexagonal wrench

Write a review

Please login or register to review

M5Stack NB-IoT Unit Global version (SIM7020G) with Antenna

  • Brand: M5Stack
  • Product Code:M5S-NB-IoT-SIM7020G
  • Reward Points:30
  • Availability:Out Of Stock
  • रo 3,029.00

  • Price in reward points:3029
