Leaf wetness is an important indicator of the infection of pathogens on the leaves. The amount of moisture on the leaf surface makes it easy to be infected by fungal and bacterial diseases. The leaf wetness & temperature sensor can measure the presence and duration of the moisture and temperature on the leaf surface. Thus, it can provide information about wetness (from dew, rain, pesticide, and irrigation, etc.) and the temperature of the leaves. With these data available, farmers can make better decisions for irrigation, pest control, and other measures to make the plants and crops grow better.

Features:

  • Compact with high Integration: 2-in-1 sensor with leaf wetness & temperature measurement
  • Supporting multiple output Interfaces: MODBUS-RTU RS485, analog voltage, and analog current
  • Simulating the real leaf thermal resistance by sensing shape and thickness
  • Strong robustness: water, ice, foggy detection
  • Industrial-grade design: IP68 rated, waterproof and dustproof, suitable for harsh environments
  • Industry standards: high accuracy with excellent stability
  • Reverse power protection and Built-in TVS/ESD protection

Specifications:

  • Output Interface: RS485 Modbus-RTU
  • Power Supply: 3.6-30V/DC
  • Power Consumption: 6mA@24V DC
  • Leaf wetness Measurement: Range:0-100%, Resolution: 0.1%, Accuracy: 5%
  • Temperature Compensation: Range: -40~80°C, Resolution:0.1 °C, Accuracy: ±0.5 °C
  • Measurement Technique: FDR
  • IP Ratings: IP68
  • Operating Temperature: -40~85°C
  • Sensor Sealed: Epoxy resin
  • Installation: Mounting kit
  • Cable Length: 2 meters

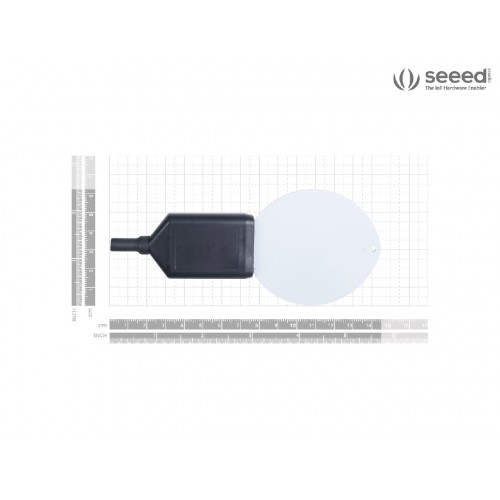

  • Dimension: 65*13*145mm

Applications:

  • Science Research
  • Smart Agriculture (outdoor & greenhouse)
  • Irrigation Management
  • Pest Control
  • Bacteria Prevention
  • Horticulture & Forestry Management

Documents:

Package Includes:

  • 1 x Industrial Leaf Wetness and Temperature Sensor (A), MODBUS-RTU RS485

Write a review

Please login or register to review

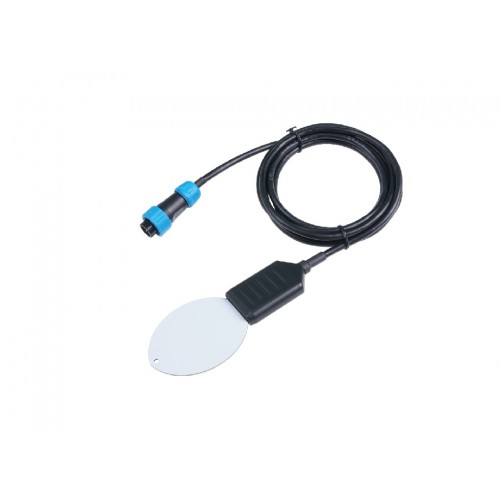

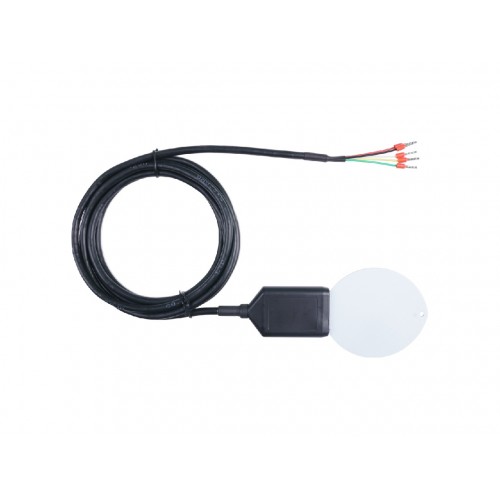

Industrial Leaf Wetness and Temperature Sensor (A), MODBUS-RTU RS485

  • Brand: Seeed Studio
  • Product Code:Seeed-Temp-Sensor-S-YM-01A-B
  • Reward Points:106
  • Availability:In Stock
  • रo 10,665.00

  • Price in reward points:10665

  • 90 or more रo 9,737.00
