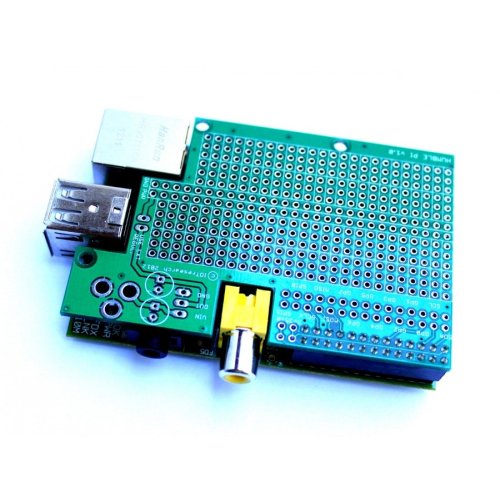

The Humble Pi is is a full size electronics prototyping board for the popular Raspberry Pi Model B mini computer. The main specifications are:

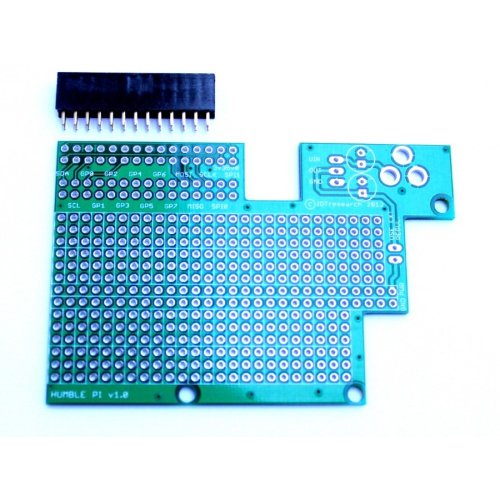

  • GPIO header is broken out to twin row pads (convienent and fast access for more than single wire hookups)
  • Construction is very easy (suitable even for children with basic soldering skills)

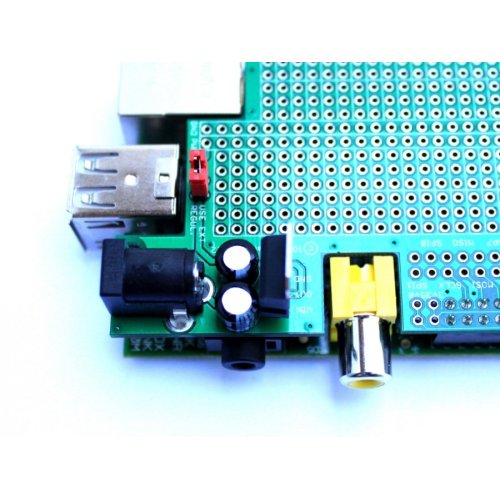

  • Optional voltage regulator kit (for when you want to use power other than the Pi power)
  • Pick up points for the Pi 3.3v and 5v supply (flexible options for powering your project)
  • Centre power rails (perfect for powering IC's and it eliminates lots of wiring)
  • 2.54mm holes arranged in 3's (a seriously convenient layout)
Features:
  • Gold plated finish (Protection against oxidization means your device will outlast normal solder finished boards)
  • Comes as a complete "self solder" kit of parts

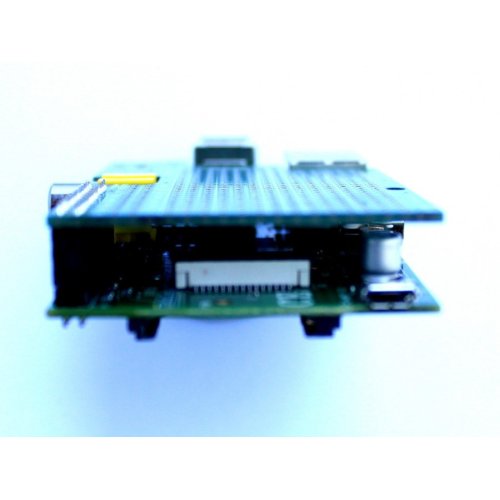

  • Complete with supporting standoff
  • Dimensions: 84.6mm x 55.5mm x 11.5mm (14.9 with optional DC jack)
  • Made in the UK

Write a review

Please login or register to review

Humble PI - Prototyping Board for Raspberry Pi

  • Brand: wireless things
  • Product Code:Seeed-Humble-Pi
  • Reward Points:12
  • Availability:In Stock
  • रo 1,188.00

  • Price in reward points:1188

  • 75 or more रo 867.00
