Special core program for multi-rotor controllers greatly improves throttle response.

  • Specially optimized software for excellent compatibility with disc-type motors.
  • All settings except the "Timing" are preset, making usage simple, highly intelligent and adaptive.
  • The twisted-pair design of the throttle signal cable effectively reduces the crosstalk produced in signal transmission and makes flight more stable.
  • Compatible with various flight-control systems and supports a signal frequency of up to 621Hz (Note: all throttle signals over 500Hz are non-standard signals) .
  • Special drive chip has much better MOSFET driving effect than common driving circuit consisted of discrete components.
  • MOSFET with extra-low resistance brings high performance and great current endurance.

*OPTO: there is no built-in BEC

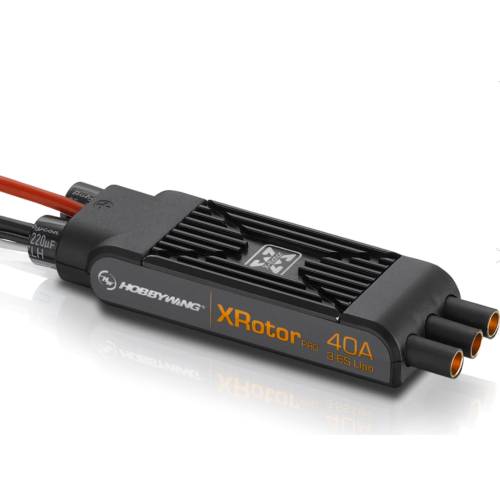

COB: You can connect your motor wire 'directly' to the ESC. so there is no motor wire coming out of the ESC


Specifications:

Model: XROTOR ESC
PRO 40A PRO 40A (COB)
SKU 30902005 30902004
Cont./Peak Current
40A/60A 40A/60A
Multicopter Applicable 550/650 Class Quadcopter 550/650 Class Quadcopter
Input / 3-6S Lipo 3-6S Lipo
Bullet connector size 3mm 3mm
BEC Type / BEC Output NO NO
Programming item ON/OFF of the DEO function ON/OFF of the DEO function
Size / Weight 66x21.8x11mm 73.5x21.8x11mm
50g 45g

Documentations:

Package Includes:

  • 1 x XRotor PRO 40A ESC (Dual Pack)



Write a review

Please login or register to review

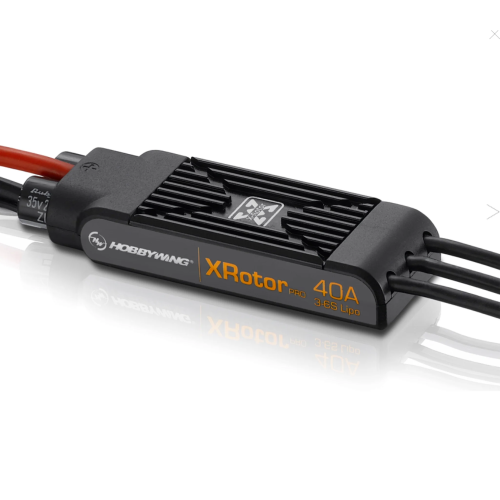

Hobbywing XRotor PRO 40A ESC (Dual Pack)
