Measuring weather and other data for outdoor application scenarios often requires sensors and data loggers in places far from any power grid. To supply power to remote sensor infrastructure, a sensor system can generate its own power. In most cases, the cheapest and most convenient method is solar panels combined with a battery. When the sun is bright enough solar panels provide enough electricity to power the sensor system and charge the battery for the night or during times when the sunlight is not sufficient.

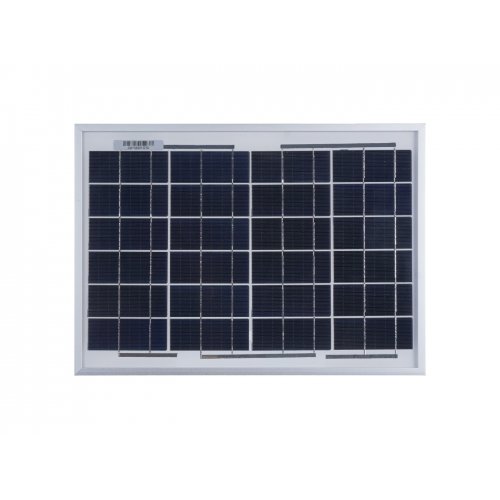

The 12W Solar Panel can be used as a convenient, cheap, and clean solution for supplying power of your applications such as environmental monitoring in agriculture, forestry, garden, or a security camera in your home or garden, etc.

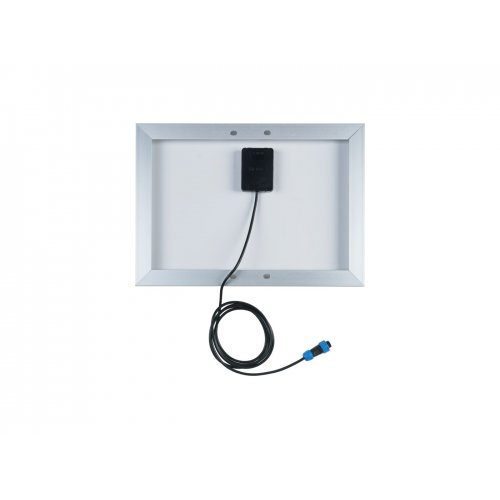

As most of Seeed IIoT products are aiming for environmental sensing scenarios, this 12 Solar Panel will come in handy for your applications with Seeed IIoT products: SenseCAP Sensor Hub and its Sensors. The Solar panel is robust enough to withstand the harsh conditions required in agriculture and environmental monitoring. The 6-pin waterproof aviation connector can be directly connected to the Sensor Hub. It charges the integrated battery of the Sensor Hub to supply electricity when the solar panels do not supply enough power.

Features:

• Mono Cel Solar Cells
• Working temperate from -20°C to 70°C
• Peak Power: 12W
• Durable: suitable for long-term outdoor applications
• Robustness: the sturdy frame protects the solar panel from deformation
• Easy installation: comes with a bracket

Specifications:

• Peak power: 12Wp
• Open circuit voltage(Voc): 14V
• Short circuit current (Isc): 1A
• Working voltage (Vmppt): 12V
• Working current (Imppt): 1A
• maximum voltage the system can withstand: 1000 Vdc

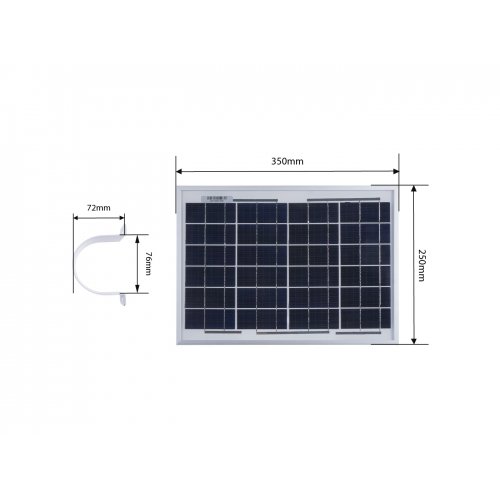

• Module size: 350x250x25 mm
• Peak power temperature coefficient: -0.45 %/℃
• Open circuit voltage temperature coefficient: -0.35 %/℃
• Short-circuit current temperature coefficient: +0.05 %/℃
• Operating temperature range: -20~70 ℃
• Maximum wind/snow load: 2400/5400Pa

Applications:

• Environmental Monitoring
• Agriculture
• Research
• Meteorological Monitoring
• Smart Home/ Garden/ Security Camera
• Other applications that needs 12W power supply

Documents:

• Datasheet

Warranty: 12 months

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

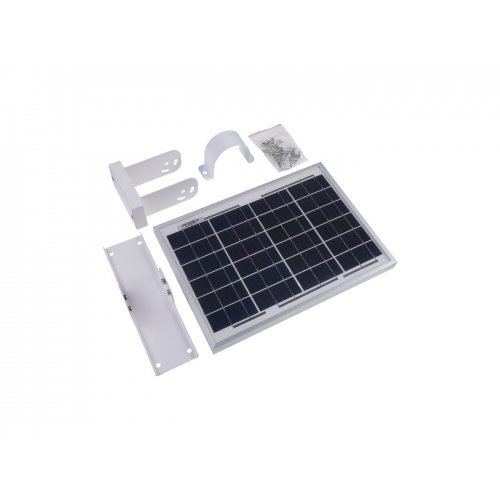

Package Includes:

• 1 x Photovoltaic module
• 1 x Stand
