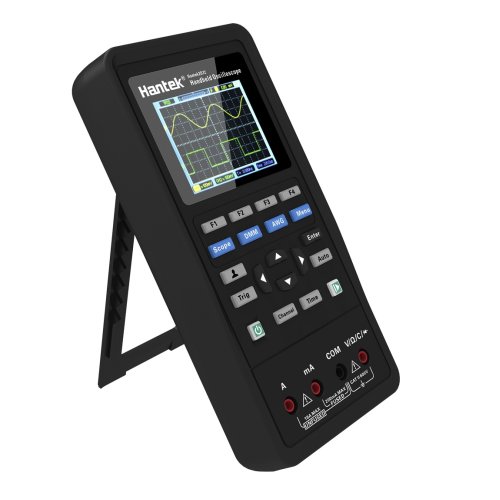

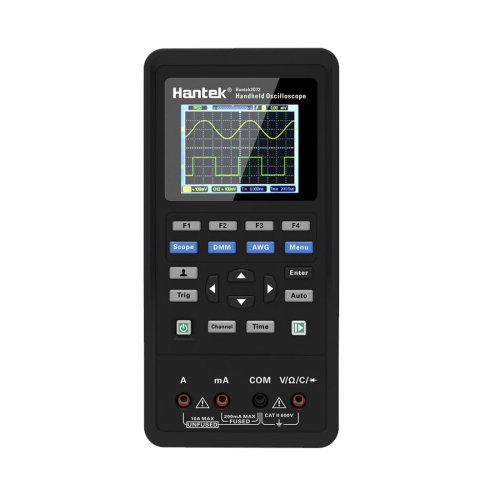

An all-new handheld oscilloscope-Hantek2000 series, it continues the compact and lightweight concept but with a new generation of 3 in 1 multifunction tester: oscilloscope, signal source and multimeter; A small volume of the non-profit grip by a single hand; The suspendingstand was designed to support multi-angle adjustment; Ultra-low-power, Type C charging interface, each 2 hours battery charge allow working one full day or standbytwo months; High-definition color LCD screen display clear and delicate; Minimalist keyboard design simplifyoperation, easy to use.
Features:
-
Oscilloscope + Waveform Generator + Multimeter: This multi-purpose station own three universal test instrument functions. It is outgoing right-hand product for engineers.
-
Intelligent charging control: Its lithium batteries can be recharged byeither high current-5V/2A or ordinary computer USB interface. Allow while charging, while using, very convenient and handy;
-
Ultra-low power design: Type C charging interface, after every recharge of 2 hours, the device can be used continuously for a full day or standby more than two months;
-
Large-capacity lithium battery power supply: 18650 replaceable lithium battery power system, free from replace battery;
-
5V/2A charger + Type C charging cable: Type C power + data transfer interface, can share the charger and data cable with your mobile phone;
-
AUTO one-key test: Magic tool and essential function for test newbie;
-
Volume small, one hand holding: The 45 degree suspension bracket design provide you a work station anywhere anytime;
-
One key page out, quick compare two groups of reference waveforms + 6 groups of waveforms storage, simple and effective;
-
Digital voltmeter function: automatic frequency and amplitude measurement, convenient and worry-free;
-
Its cursor measurement functionsupports time and voltage manual measurement, and measure the required waveforms accurately;
-
One-click switching its Chinese and English language menu;
-
Color LCD screen: exquisite and smooth lines make the waveforms clear and undistorted when magnify;
-
Minimalist keyboard design simplify operation, convenient to use;
-
Unibody casing: fine touch feeling, favorable impact resistance, outstanding heat resistance, easy to disassemble;
-
Self-calibration function: free from level drift after long time unused;
-
Universal multimeter function: voltage, current, resistance, diode, capacitor, on-off test;
-
Waveform generator output function: output sine, square, triangle, trapezoidal and other waveforms; sine up to 25MHz
Specifications:
|
Oscilloscope Mode |
|
Model |
Hantek2D72 |
Hantek2D42 |
|
Bandwidth |
70MHz |
40MHz |
|
Channel |
2CH+DMM+AFG |
2CH+DMM+AFG |
|
Sample Rate Range |
250MSa/s(Single-channel), 125MSa/s(Dual-channel) |
|
Waveform Interpolation |
(sin x)/x |
|
Record Length |
Max. 6K for single-channel; 3K samples per dual-channel |
|
SEC/DIV Range |
5ns/div~500s/div 1, 2, 5 sequence |
|
A/D Converter |
8-bit resolution,each channel sampled simultaneously |
|
VOLTS/DIV Range |
10mV/div~10V/divat input BNC |
|
Bandwidth Limit, typical |
20MHz |
|
Low Frequency Response (-3db) |
≤10Hz at BNC |
|
Rise Time at BNC, typical |
≤5ns |
|
DC Gain Accuracy |
±3% for Normal or Average acquisition mode, 10V/div to 10mV/div |
|
Type |
Edge |
|
Mode |
Auto, Normal, single |
|
Level |
±4 divisions from center of screen |
|
Trigger Level Accuracy |
0.2div × volts/div within ±4 divisions from center of screen |
|
Slope |
Rising, Falling, Rising & Falling |
|
Source |
CH1/CH2 |
|
Coupling |
DC, AC or GND |
|
Input Impedance |
25pF±3 pF, 1MΩ±2% |
|
DC coupled |
25pF±3 pF, 1MΩ±2% |
|
Probe Attenuation |
1X, 10X |
|
Supported Probe Attenuation Factors |
1X, 10X, 100X, 1000X |
|
Maximum Input Voltage |
150VRMS |
|
Cursor |
Voltage difference between cursors: △V, Time difference between cursors: △T |
|
Automatic Measurements |
Frequency, Amplitude |
|
Display Type |
2.8 inch64K color TFT |
|
Display Resolution |
320 horizontal by 240 vertical pixels |
|
Display Contrast |
Adjustable |
|
Supply Voltage |
100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A |
|
Power Consumption |
<2.5W |
|
Fuse |
T, 3A |
|
Battery |
2600mA*2 |
|
Operating Temperature |
0~50 °C (32~122 °F) |
|
Storage Temperature |
-40~+71 °C (-40~159.8 °F) |
|
Humidity |
≤+104℉(≤+40°C): ≤90% relative humidity, 106℉~122℉ (+41°C ~50°C): ≤60% relative humidity |
|
Cooling Method |
Convection |

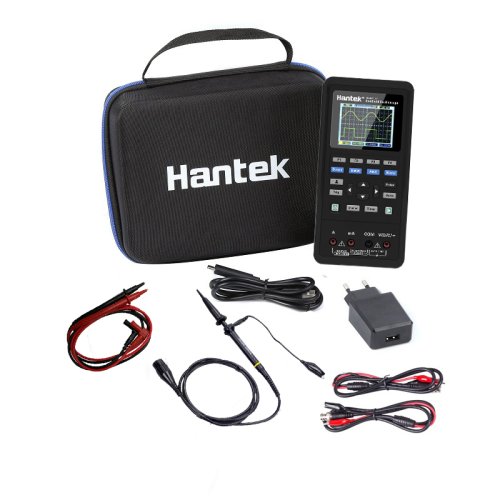

Package Includes:
-
1 x Hantek 2000 Series Oscilloscope
-
1 x Probe
-
2 x Clip Probe
-
1 x Type Charging Cable
-
1 x Power Adapter
-
1 x Multimeter Probe
| Oscilloscope Specifications |
| Sample Rate |
250MSa/s(Single-channel), 125MSa/s(Dual-channel) |
| Display Type |
2.8 inch64K color TFT |
| Record Length |
Max. 6K for single-channel; 3K samples per dual-channel |
| Bandwidth |
40MHz , 70MHZ |
| Resolution |
320 horizontal by 240 vertical pixels |
| Electrical Specifications |
| Input Voltage |
100V-240VAC, 50Hz-60Hz; DC INPUT: 5VDC, 2A |
