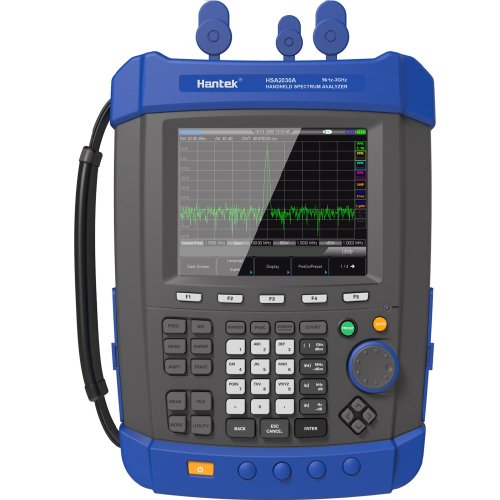

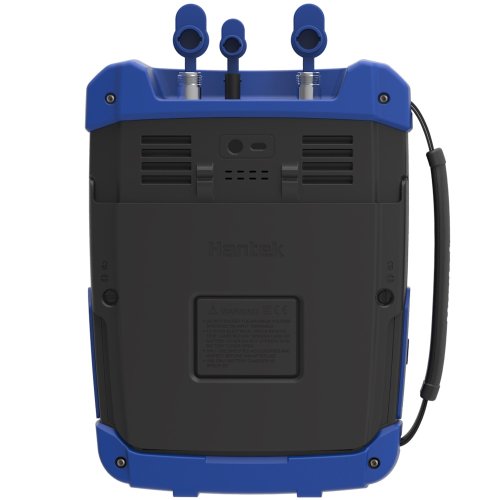

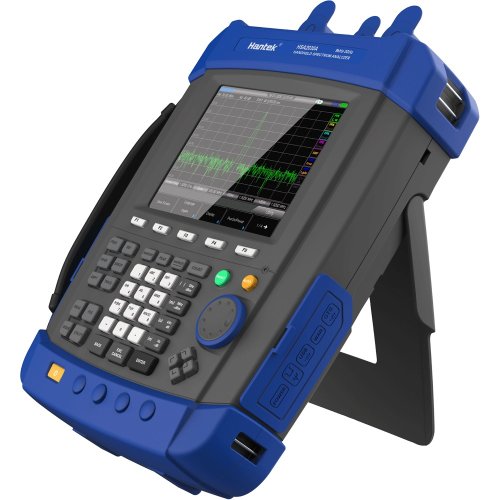

Hantek HSA2030 Series Spectrum Analyzer can be used in laboratory, more suitable for field mobile use.
Features:
- Frequency range :9KHz~3.2GHz;
- Optimal sensitivity: -161dBm;
- RBW:10Hz to 1MHz.
- High protection portable design, sturdy and durable
- can be used in laboratory, more suitable for field mobile use
- built-in large capacity lithium battery, can work for more than 4 hours. 18650 rechargeable battery.
- USB/LAN communication, easy for long-range control.
- 5.6 inch highlight color display, 640*480 resolution, waveform display clearly.
Specifications:
Model | HSA2030A | HSA2030B | |
Frequency Range | 9KHz~3.2GHz AC Coupled | 9KHz~3.2GHz AC Coupled 5M~3.2GHz TG | |
Frequency Resolution | 1Hz | ||
Reference Frequency | 10MHz | ||
Frequency Readout Accuracy | ±(frequency indication*frequency reference uncertainty+1%*span+20%RBW+marker resolution+1Hz) | ||
Internal 10MHz Reference Accuracy | Aging rate | ±1ppm/year(0℃~50℃,Reference is 25℃) | |
Temperature stability | ±1ppm/year | ||
Marker Resolution | (Frequency span)/(number of sweep points-1) | ||
-3dB Bandwidth | 10Hz to 1MHz,1-3-10 sequence | ||
Accuracy | ±5% RBW=10Hz~1MHz nominal | ||
Resolution Filter Shape Factor | <5:1 nominal | ||
Video Bandwidth (VBW) | -3dB bandwidth | 1Hz to 1MHz,1-3-10 sequence | |
Accuracy | ±10% VBM=1Hz~1MHz nominal | ||
Displayed Average Noise Level (normalized to1Hz) | |||
9K~1MHz | Preamp off | -108dBm,typical -127dBm | |
1MHz ~10MHz | -128dBm,typical -146dBm | ||
10MHz ~500MHz | -142dBm,typical -146dBm | ||
500MHz ~2.5GHz | -141dBm,typical -145dBm | ||
2.5GHz ~3GHz | -140dBm,typical -144dBm | ||
9K~1MHz | Preamp on | -131dBm,typical -150dBm | |
1MHz ~10MHz | -148dBm,typical -163dBm | ||
10MHz ~500MHz | -161dBm,typical -164dBm | ||
500MHz ~2.5GHz | -159dBm,typical -162dBm | ||
2.5GHz ~3GHz | -158dBm,typical -161dBm | ||
SSB Phase Noise | Carrier Offset(20℃~30℃,500MHz Central Frequency) | 10K | < -92 dBc/Hz, typical -95 dBc/Hz |
30K | < -93 dBc/Hz, typical -96 dBc/Hz | ||
100K | < -95 dBc/Hz, typical -97 dBc/Hz | ||
1MHz | < -117 dBc/Hz, typical -119 dBc/Hz | ||
Range | Span >100Hz | 2ms to 1000s | |
Span=0Hz | 600ns to 200s | ||
Sweep Mode | Continuous, single | ||
Trigger Source | Free run; video; external | ||
Trigger slope | Selectable positive or negative edge | ||
Trigger delay | Span =0Hz | ±12ms to ±12s nominal | |
Frequency Counter | Counter Resolution | 1Hz | |
Accuracy | ± (marker frequency × frequency reference uncertainty + counter resolution) | ||
Log Scale and Units | 1 to 10 dB/divisions in 1, 2, 5, 10 dB steps, 10 divisions displayed | ||
Linear Scale and Units | 0 to 100%,10 divisions displayed | ||
Scale Unit | dBm,dBmV,dBuV,Watts,Volts | ||
Sweep (Trace) Points | 461 | ||
Number of Markers | 4 | ||
Detectors | Normal, positive peak, dample, negative peak, RMS | ||
Number of Traces | 4 | ||
Trace Functions | Clear/write, maximum hold, minimum hold, average, check,close | ||
Level Measurement Error |
±1.5dB(excluding input VSWR mismatch)
20~30℃,peak detector, preamplifier off, input signal -50dBm to 0dBm
|
||
Setting Range | -100dBm to +30dBm, steps of 1dB | ||
Setting Resolution | Log scale: 0.01dB | Linear scale: Almost log(2.236μV to 7.07V) | |
Maximum Safety Input Level | Average continuous power: +33dBm | DC input voltage: 50Vdc | |
Measurement Range | 9KHz~2MHz | Displayed average noise level (DANL) to +10dB | |
2MHz~3GHz | Displayed average noise level (DANL) to +20dB | ||
Input attenuator range | 0 to 51dB,1dB steps | ||
Second Harmonic Distortion(SHI) | <65dBc,50MHz to 3GHz(Mixer level -30dBm,attenuator =0dB,preamp off,20℃~30℃) |
Second Harmonic Distortion(SHI) | <65dBc,50MHz to 3GHz(Mixer level -30dBm,attenuator =0dB,preamp off,20℃~30℃) | |
Third-OrderIntermodulation(TOI) | 50~300MHz | +8dBm,Third-order intermodulation products:2 x -20dBm; frequency separation 100KHz:attenuation = 0dB; preamp off,20℃~30℃ |
300MHz~1.6GHz | +10dBm | |
Input Related Spurious | <-75dBc,(input mixer = -30dBm) | |
Inherent Residual Response | <-90dBm,typical -98dBm (Input terminated and 0 dB RF attenuation, preamplifier off) | |
RF Input VSWR (at Tuned Frequency) | 10MHz to 1.6GHz | <1.5:1, nominal Attenuator setting 10~20dB |
Reference Iinput Frequency | 10MHz | |
Reference Input Amplitude | 0~10dBm | |
Trigger Voltage | 5V TTL level | |
Connector and Output Impendence | N female;(50Ω) |
Documents:
Package Includes:
- 1 x Hantek HSA2030 Series HSA2030A / HSA2030B Spectrum Analyzer
Hantek HSA2030 Series HSA2030A / HSA2030B Spectrum Analyzer
- Brand: Hantek
- Product Code:HTK-HSA2030-Analyzer
- Reward Points:4260
- Availability:In Stock
-
रo 426,049.00
- Price in reward points:426049
