HDG6000B series integrates multi-function like arbitrary waveform generator, pulse generator, 16-bit word generator, 7-digit cymometer and function generator; It can generate and output stable, accurate and low distortion signals; Built-in over 150 type arbitrary waveforms, which is easy to simulate various signals; Its large screen, user-friendly interface design and keyboard layout are convenient to use; Rich standard configuration interfaces easily achieve remote control of the instrument.
  • Output frequency range: 1uHz ~ 200MHz / 160MHz / 110MHz / 80MHz;
  • Up to 1.25GSa/s sampling rate, 16bits vertical resolution to ensure the accuracy of the output waveform;
  • Up to 64M memory depth, ensuring better waveform detail creation;
  • Large and clear display screen (7.0-inch LCD color display, resolution up to 800x640), user interface is clear and intuitive;
  • A rich set of modulation functions, support AM, FM, PM, 2ASK, 2FSK, 2PSK and PWM etc. ;
  • 1uHz frequency resolution; minimum 2mv output amplitude;
  • Built-in 7-digit high-resolution 200MHz cymometer; with optional higher performance cymometer;
  • Standard communication interface: HDG6000B series: USB Host, USB Device;
  • Built-in more than 150 arbitrary waveforms, including exponential rise, exponential drop, ECG signal, Gaussian, semi-positive, Lorentz, dual-tone multi-frequency, DC voltage, etc.

Specifications:

Model HDG6202B HDG6162B HDG6112B HDG6082B
Channel 2 2 2 2
Waveform Length                          64M
Frequency Range 200MHz 160MHz 110MHz 80MHz
Sampling Rate                              1.25GSa/s
Voltage Resolution                       16bit
Digit Output Mode                       16 channels output
Standard Waveform       sine, square, triangle, pulse, noise, harmonic
Arb. Waveform                More than 150 kinds: index rise, exponential decline, ECG                                               signal, Gaussian, semi-positive, Lorentz, dual-tone multi-                                                         frequency, DC voltage, etc.
Sine 1uHz~200MHz 1uHz~160MHz 1uHz~110MHz 1uHz~80MHz
Square 1uHz~60MHz 1uHz~50MHz 1uHz~40MHz 1uHz~35MHz
Pulse 1uHz~50MHz 1uHz~40MHz 1uHz~25MHz 1uHz~20MHz
Triangle 1uHz~5MHz 1uHz~4MHz 1uHz~3MHz 1uHz~2MHz
White Noise 120MHz 120MHz 110MHz 80MHz
Harmonic 1uHz~100MHz 1uHz~80MHz 1uHz~55MHz 1uHz~40MHz
Arbitrary 1uHz~50MHz 1uHz~40MHz 1uHz~25MHz 1uHz~15MHz
Resolution                                     1uHz
Accuracy                                      ±2ppm, 18~28℃
Display                          7 inch, 64K color, TFT LCD Screen, 800x640
Voltage                                   100-240V, 45Hz - 440Hz
Power                                            <50W
Interface  HDG6000B: USB Host, USB Device, Optional RS232 port
HDG6000C: USB Host, USB Device, LAN port, Wi-Fi, Touch Screen, Optional RS232 port



Documents:

Warranty:

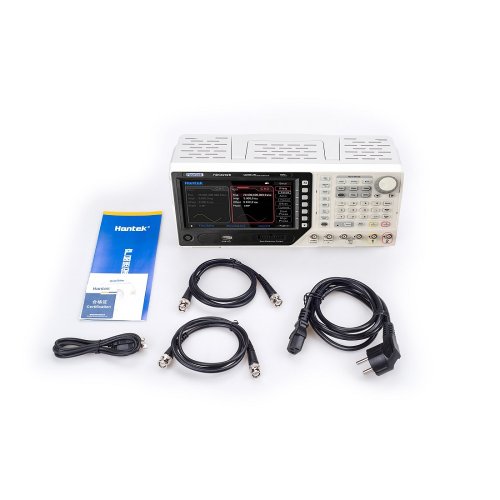

Package Includes:

  • 1 x Hantek HDG6000B Series Function/Arbitrary Waveform Generator
Function Generator
Output Frequency 1uHz ~ 200MHz / 160MHz / 110MHz / 80MHz
Sample Rate Up to 1.25GSa/s sampling rate
Resolution 16bits vertical resolution

Write a review

Please login or register to review

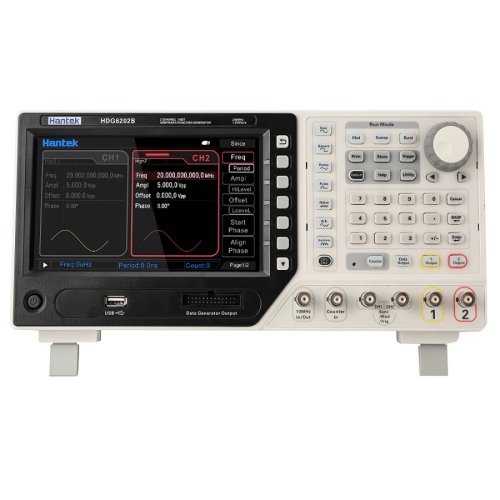

Hantek HDG6000B Series HDG6082B / HDG6112B / HDG6162B / HDG6202B Function / Arbitrary Waveform Generator

  • Brand: Hantek
  • Product Code:HTK-HDG6000B
  • Reward Points:561
  • Availability:Out Of Stock
  • रo 55,250.00

  • Price in reward points:56149

  • 2 or more रo 54,801.00
  • 3 or more रo 54,352.00
