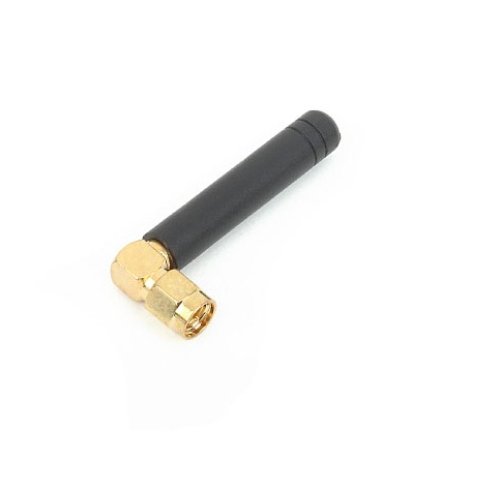

A quality robust antenna with high gain in small form factor with fixed right angle SMA connector and hardened waterproof PU casing. This antenna is the ideal GSM antenna for M2M devices.

Features and Specifications:

Supported band: GSM 850,900,1800,1900
Frequency (MHz): 824~960 1710~1990
Impedance: 50 Ω
Gain: 0 dBi
VSWR: 2.3
Dimensions (mm): 45 x 8
Temperature range: -40o C to +85o C
Coaxial connector : SMA/M RA reverse polarity

GSM Stubby SMA Antenna

Product Code:SP-Antenna-GSM-Stubby
Reward Points:1
Availability:In Stock

रo 95.00
Price in reward points:95

Qty
