• Grove - IR Distance Interrupter

V1.2 Description is below



Grove - IR Distance Interrupter V1.0

This IR Distance Interrupter features a high-sensitivity RFR-359F photoreflector to perform distance detection function. The photoreflector consists of a GaAs infared light emitting diode and a silicon planar phototransistor. When the infrared light emitted by the emitter gets reflected on a surface that blocked it, the phototransistor can pick up the signal for distance calculation. This module is panel mounted so that you can easily implement it on the surface of robots or other projects without wiring clutter. Also a potentiometer for adjustment and an indicator LED are arranged on the back for easy and clear use.



Features

  • High sensitivity photoreflector

  • Lightweight and compact

  • Panel mount design for clean and tidy implementation

  • Clear HID design: adjustment potentiometer and indicator LED





Application Ideas

  • Wanderer robots

  • RPM gauges

  • Approximation detection



Documents

Please visit our wiki page for more info about this product. It will be appreciated if you can help us improve the documents, add more demo code or tutorials. For technical support, please post your questions to our forum.

Technical Details

Dimensions 20mm x 20mm x 14.5mm
Weight G.W 6g
Battery Exclude

Part List

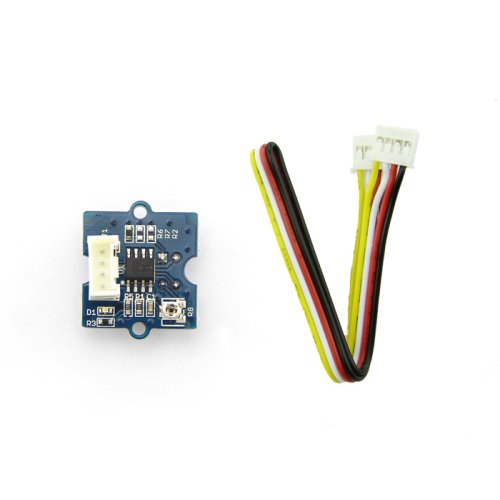

Grove - IR Distance Interrupter 1
Grove - Cable 1

Documents



Grove - IR Distance Interrupter V1.2

Description
Provided a high-sensitivity ITR9909 photo-reflector, Grove - IR Distance Interrupter v1.2 can be used to detect if there is an object presenting in front of it. The photo-reflector consists of a GaAs infared light emitting diode and a silicon planar phototransistor. When an object is placed right in front of the sensor, the reflective infrared light emitted from the emitter will be picked up by phototransistor and then outputs logical HIGH or logical LOW according to the distance between the reflection surface and the sensor.

By adjusting the potentiometer, you can set the detection threshold value in a range from about 90mm to 300mm if the reflection surface is a piece of white paper. An indicator LED is used to visualize the result of measurement as it will lights up bright red when an object is detected, and go off when there is nothing.

Features
Easy to use
Integrated indicator LED
Digital output
Adjustable detecting range

Specification
Power supply: 5V DC
Reflective photo sensor: ITR9909
Digital output mode: TTL (High when black is detected, Low when white is detected)
Connector: 4 pin Buckled Grove interface
Dimension: 20mm*20mm

Technical Details
Dimensions 130mm x 90mm x 12mm
Weight G.W 8g    N.W 8.5g
Battery Exclude

Part List
Grove - IR Distance Interrupter v1.2 1
Grove - cable







Write a review

Please login or register to review

Grove - IR Distance Interrupter

  • Brand: Seeed Studio
  • Product Code:Seeed-Grove-IR-Distance-Interrupter
  • Reward Points:4
  • Availability:In Stock
  • रo 387.00

  • Price in reward points:387
