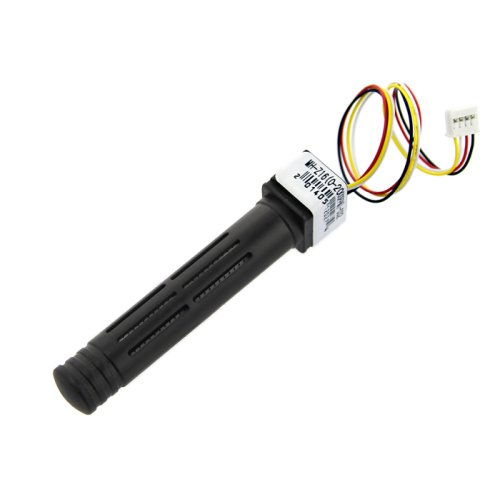

The Grove - CO2 Sensor module is infrared CO2 sensor high sensitivity and high resolution. Infrared CO2 sensor MH-Z16 Is a general-purpose, small sensors , the use of non-dispersive infrared (NDIR) Present in the principle of the air CO2 Detect , with good selectivity, oxygen- dependent , long life， built-in temperature sensor, temperature compensation ，with UART output , easy to use. It can be widely used in HVAC and indoor air quality monitoring , industrial process monitoring and security , agriculture and livestock production process monitoring.
Specification
- Measuring the range of 0-2000 parts per million (PPM)
- Resolution of 1 PPM 0-2000 parts per million (PPM)
- Accuracy of 200 PPM
- A Warm - up time 3 minutes
- Response Time <90s
- Operating temperature 0 to 50℃
- Operating Humidity 0% ~ 90% RH
- Storage temperature - 20-60℃
- Operating Voltage4.5 V to 6 V DC
- The Current maximum Current of less than 100 ma, the average Current of less than 50 ma
- Output mode UART
Documents
Grove - CO2 Sensor
- Brand: Seeed Studio
- Product Code:Seeed-Grove-CO2-Sensor
- Reward Points:67
- Availability:In Stock
-
रo 6,667.00
- Price in reward points:6667
-
- 2 or more रo 6,613.00
- 4 or more रo 6,560.00
- 10 or more रo 6,507.00
- 19 or more रo 6,453.00
