Do you always feel like the DIY work is boring, not attractive or no vitality when you design it by yourself?

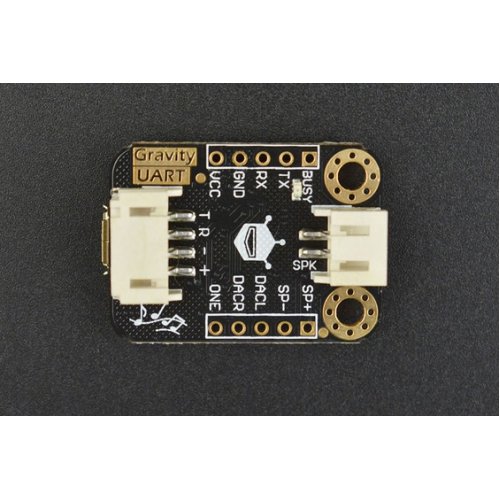

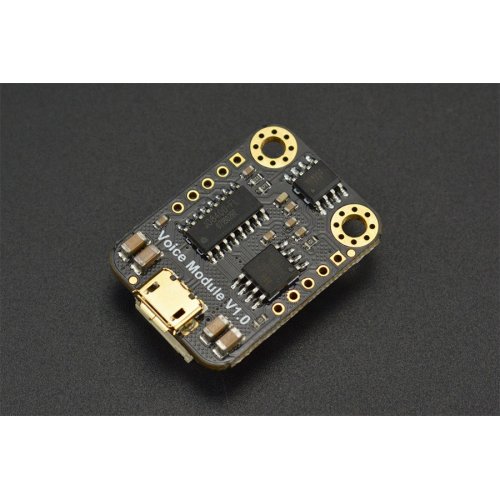

This new Gravity MP3 voice module produced by DFRobot can solve these problems. This module can store 8MB audio files, which means it can store more than 200 audios for your choice, support MP3 and WAV formats. Its storage method is as simple as USB flash drive, and audios can be updated at any time. It uses the DF-Gravity interface, free from wiring; It has the ability to play the specified audio, play in loop, and adjust volume. It is suitable for all kinds of projects related to sound or voice, such as intelligent car, meteorological stations, smart home devices, vehicle navigation, toll stations, safety monitoring, machine audio navigation and so on.

Specifications:

• Operating Voltage: 3.3V ~ 5V
• Interface: UART
• Support MP3 WAV Hardware Decoding
• Support Sampling Rate (KHz): 8/11.025/12/16/22.05/24/32/44.1/48
• Support to imitate SPIFLASH to U disk, and audios in SPIFLASH can be updated by the way to operate USB flash drive
• Support 30 levels of volume adjustment

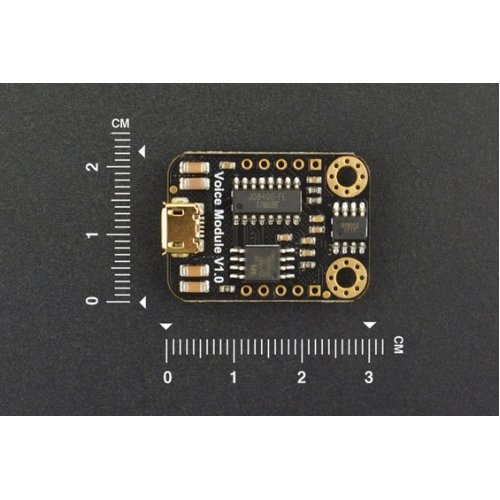

• Dimension: 22x30mm/0.87x1.18in

Documents:

• Product wiki

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

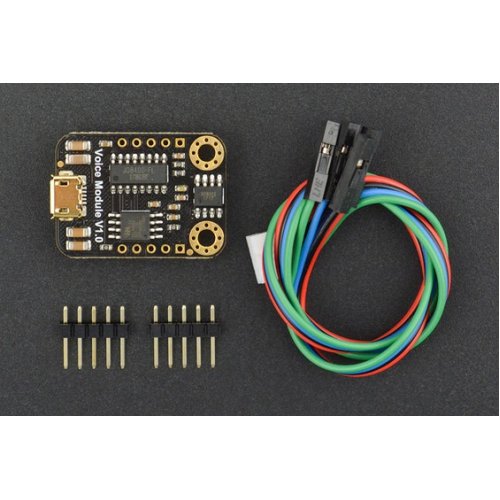

Package Includes:

• 1 x Gravity: UART MP3 Voice Module
• 1 x Gravity UART/I2C sensor cable
