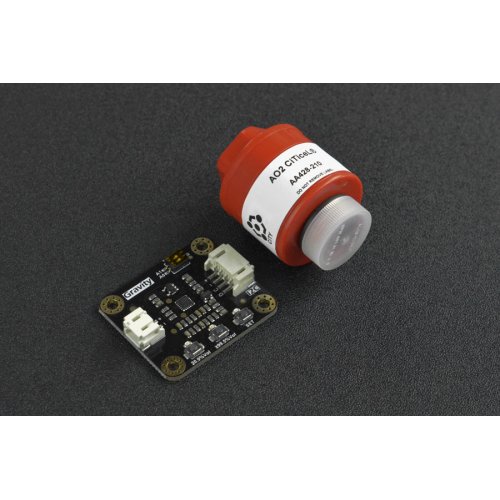

This full-scale oxygen sensor employs the original AO2 CiTiceL oxygen sensor probe and features a measurement range of 0-100%Vol and I2C digital output, which can be adapted to application scenarios including oxygen generators, automobile exhaust, and air-fuel ratio detection.

The DFRobot oxygen sensor has a built-in calibration algorithm on the signal board that can quickly perform single-point or double-point calibration so as to accurately measure the oxygen concentration in the environment. Based on the principle of electrochemistry, the sensor probe comes with strong anti-interference ability, high stability and sensitivity, and up to two years of service life. It is compatible with mainstream controllers such as Arduino, ESP32, Raspberry Pi, etc. Besides, the sensor is designed with an easy-to-use Gravity interface, and with our sample codes, you can quickly build an oxygen detector.

Caution: Exposure to high concentrations of solvent vapors is avoided, both during storage, fitting into instruments, and operation.

Features:

  • Strong anti-interference ability
  • High stability and sensitivity

Applications :

  • Oxygen generators
  • Automobile exhaust
  • Air-fuel ratio detection

Specifications :

  • Physical Quantity Detected: Oxygen concentration
  • Measuring Range: 0~100%
  • Working Voltage: 3.3~5.5V DC
  • Output Signal: I2C
  • Working Pressure Range: 0.5~2.0Bar
  • Operating Temperature Range: -20°C ~ +50°C
  • Operating Humidity Range: 0-99% RH (non-condensing)
  • Response Time: <5S
  • Lifespan: >2 years (in air)
  • Size: 32mm*27mm/1.26*1.06 inch
  • Mounting Hole Size: inner diameter 3.1mm(0.12 inch)/outer diameter 6mm(0.24 inch)
  • Compatible with Arduino, ESP32, Raspberry Pi

Documents :

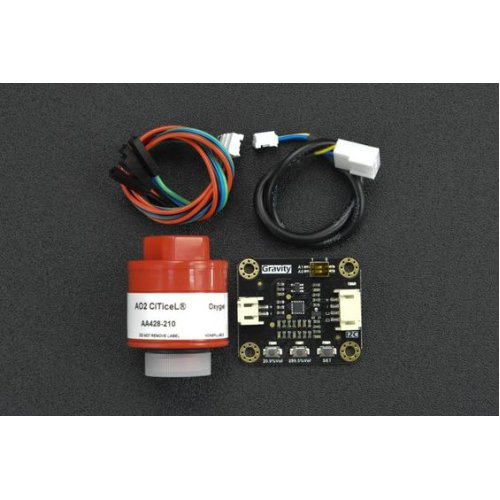

Package Includes:

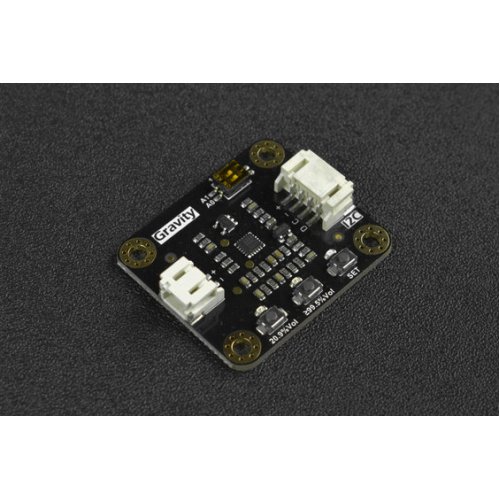

  • 1 x Gravity: AO2 Oxygen Sensor Signal Adapter Board

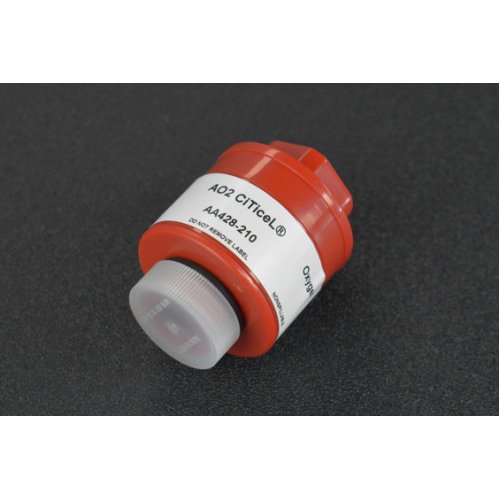

  • 1 x AO2 Oxygen Sensor Probe
  • 1 x Gravity-4Pin Cable
  • 1 x Molex 2510 - PH2.0 cable (20CM)

Write a review

Please login or register to review

Gravity Electrochemical Oxygen Sensor (0-100%Vol) I2C

  • Brand: DFRobot
  • Product Code:NR-DFR-Gravity-Electrochemical-Oxygen-Sensor
  • Reward Points:98
  • Availability:In Stock
  • रo 9,492.00
  • रo 8,236.00

  • Price in reward points:9805

  • 2 or more रo 9,452.00
  • 3 or more रo 9,413.00
  • 7 or more रo 9,165.00
