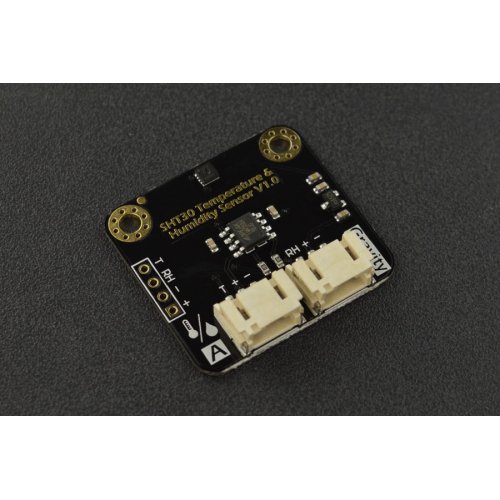

Gravity: Analog SHT30 Temperature & Humidity Sensor adopts the new generation SHT30 temperature and humidity sensor from Sensirion. Thanks to Sensirion's CMOSens® technology, highly integrated capacitive humidity sensing components and band-gap temperature sensing components, the SHT30 offers high reliability and long-term stability with low power consumption, fast response and immunity to interference. The sensor is internally calibrated, linearized and amplified to output analog voltages that are linear with temperature or humidity. It is compatible with 3.3V/5V controllers such as Arduino, micro:bit, ESP32. It is easy to achieve precise and high reliability temperature and humidity sensing for urban environment monitoring, intelligent buildings, industrial automation, smart home and other Internet of Things applications.



                                   Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (Arduino UNO)









                                                            Gravity: Analog SHT30 Temperature & Humidity Sensor connection diagram (micro:bit+micro:mate)



Features :

• Internal auto-calibration, linear analog voltage output
• High precision, low power consumption, fast response
• Compatible with 3.3V/5V controller

Applications :

• Urban Environmental Monitoring
• Intelligent Building, Home
• Industrial Automation

Specifications :

• IC (Sensor): Sensirion SHT30
• Input Voltage (VCC) : 3.3V~5.5V
• Interface: Gravity Analog (PH2.0-3P，analog voltage output 0.3-2.7V)
• Quiescent Current: <0.5 mA
• Dimension: 30×32 mm / 1.18×1.26 in
• Weight: 3g
• Temperature Performance

                      Range: -40 ~ 125 ℃

                      Resolution: 0.01 ℃, 14bit

                      Accuracy: ±0.2℃@10~55℃ (typical), ±1.5℃@-40 ~ 125 ℃ (typical)

                      Response Time: >2s

• Humidity Performance

                      Range: 0 - 100 %RH

                      Resolution: 0.006 %, 14bit

                      Accuracy: ±3 %RH@10~90 %RH (typical)，±8 %RH@0~100 %RH (typical)

                      Response Time: >8s



Documents :

• Product wiki
• More Documents

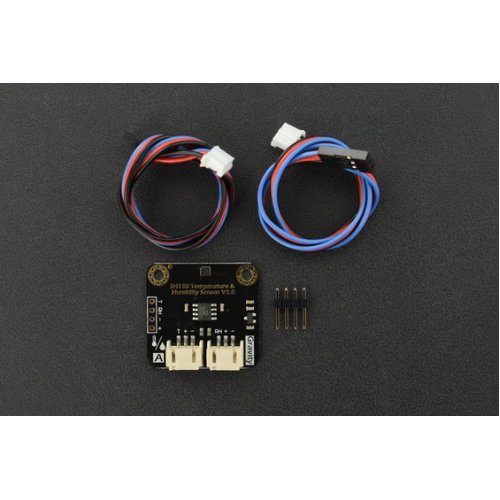

Package includes :

• 1 x Gravity: Analog SHT30 Temperature & Humidity Sensor
• 1 x XH2.54-4P Black Header
• 2 x Gravity-3P Analog Sensor Cable
