Water flow sensor consists of a plastic valve body, a water rotor, and a hall-effect sensor. When water flows through the rotor, rotor rolls. Its speed changes with different rate of flow. The hall-effect sensor outputs the corresponding pulse signal. This one is suitable to detect flow in water dispenser or coffee machine. We have a comprehensive line of water flow sensors in different diameters. Check them out to find the one that meets your need most.

Features:

  • Compact, Easy to Install
  • High Sealing Performance
  • High Quality Hall Effect Sensor
  • RoHS Compliant
  • Transparent
Type Dimensions(DN) Working Voltage   Flow Rate         Range   Length          Male & Female           Length of                 Thread Material
G1&2 DN15 5V~24V(DC) 1~30L/min   Double Male   Plastic
G3&4 DN20 5V~24V(DC) 1~60L/min   Double Male   Plastic

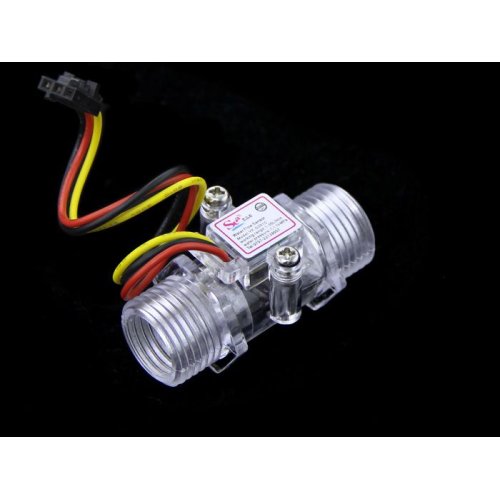

G1&2 DN15 5V~24V(DC) 1~30L/min 60mm Double Male 13mm Plastic
G1&8 - 5V~24V(DC) 0.3~6L/min - - - Plastic
M11 x 1.25 - 5V~24V(DC) 0.3~6L/min - - - Plastic

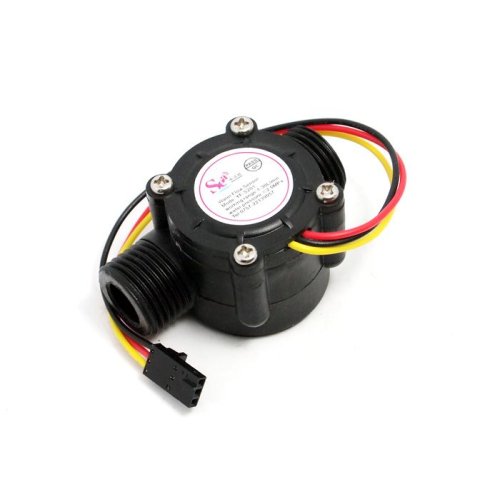

G1&2

Mini. Working Voltage:             DC 4.5V
Max. Working Current:             15mA (DC 5V)
Working Voltage:                      DC 5V~24V
Flow Rate Range:                     1~30L/min
Flow Pulse:             F(Hz)= (5.0*Q)±               3%Q=L/Min
Load Capacity:                           ≤10mA (DC 5V)
Operating Temperature:             ≤80℃
Liquid Temperature:                   ≤120℃
Operating Humidity:                   35%~90%RH
Water Pressure:                         ≤1.75MPa
Storage Temperature:                -25~+ 80℃
Storage Humidity:                       25%~95%RH
HSCODE 9026100000
USHSCODE 9026102040
UPC 841454116110
Dimensions 100mm x60mm x38mm
Weight G.W 65g
Battery Exclude

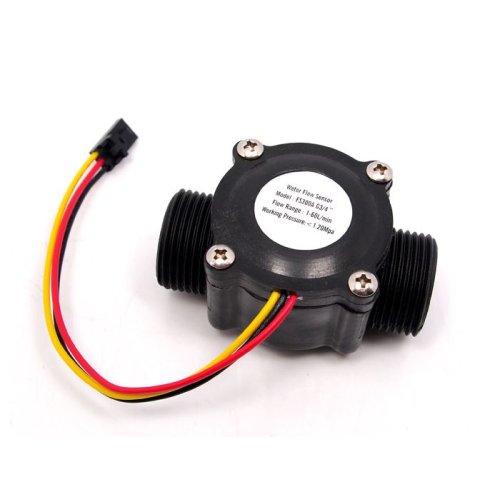

G3&4

Max. Working Current:      15mA (DC 5V)
Working Voltage:               DC 5V~24V
Flow Rate Range:              0~60L/min
Load Capacity:                  ≤10mA (DC 5V)
Operating Temperature:    ≤80℃
Liquid Temperature:          ≤120℃
Operating Humidity:          35%~90%RH
Water Pressure:                ≤2.0MPa
Storage Temperature:       -25~+ 80℃
Storage Humidity:              25%~95%RH
Dimensions        100mm x60mm x38mm
Weight        G.W 65g
Battery        Exclude
HSCODE 9026100000
USHSCODE 9026102040
UPC 841454116110
ROHS 1

G1&2 60mm

Mini. Working Voltage:  DC 4.5V
Max. Working Current:  15mA (DC 5V)
Working Voltage:           DC 5V~24V
Flow Rate Range:         1~30L/min
Load Capacity:              ≤10mA (DC 5V)
Operating Temperature: ≤80℃
Liquid Temperature:     ≤120℃
Operating Humidity:     35%~90%RH
Water Pressure:           ≤1.75MPa
Storage Temperature:  -25~+ 80℃
Storage Humidity:        25%~95%RH
Dimensions                  0mm x0mm x0mm
Weight G.W 51g
Battery Exclude
HSCODE 9026100000
USHSCODE  9026102040
UPC 841454116097

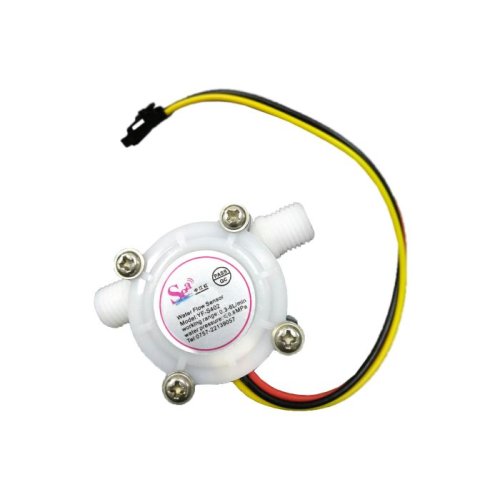

G1&8

Dimensions 0mm x0mm x0mm
Weight G.W 30g
Battery Exclude
Mini. Working Voltage DC 4.5V
Max. Working Current 15mA (DC 5V)
Working Voltage DC 5V~24V
Flow Rate Range 0.3~6L/min
Load Capacity ≤10mA (DC 5V)
Operating Temperature ≤80℃
Liquid Temperature ≤120℃
Operating Humidity 35%~90%RH
Water Pressure ≤0.8MPa
Storage Temperature -25~+ 80℃
Storage Humidity 25%~95%RH
HSCODE 9026100000
USHSCODE 90261060
UPC 841454116134
ROHS 1

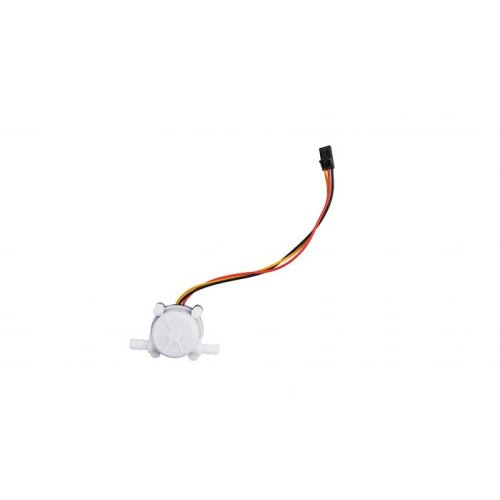

M11x1.25

Dimensions 0mm x0mm x0mm
Weight G.W 31g
Battery Exclude
Mini. Working Voltage 4.5V (DC)
Max. Working Current 15mA @ 5V DC
Working Voltage 5V ~ 24V (DC)
Flow Rate Range 0.3 ~ 6L/min
Load Capacity ≤ 10mA (DC 5V)
Operating Temperature ≤ 80℃
Liquid Temperature ≤ 120℃
Operating Humidity 35% ~ 90%RH
Water Pressure ≤ 0.8MPa
