Description
Reviews (0)

This pack contains everything you need to add up to three female Futaba J connectors — the connectors found on many Futaba servos — to custom cables. You can use a crimping tool to attach the included pins to your own 22–26 AWG wires. This pack contains enough housings and crimp pins (including 3 spare pins) for 3 female connectors. The crimp pins have gold-flashed female contacts.

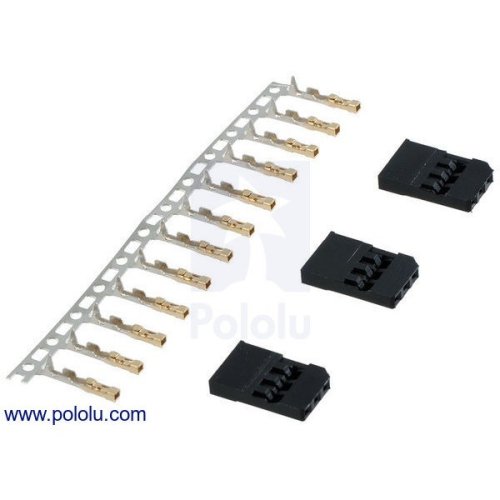

This Futaba J connector has a 0.1" pin spacing and is found on many Futaba servos. It is keyed with a polarizing tab that enforces proper orientation when used with a corresponding male Futaba connector. This pack contains three housings and twelve gold-flashed crimp pins, which is enough for three complete female connectors and three spare pins. The crimp pins are designed for 22–26 AWG wires, and we sell a crimping tool that works well with them. You can use these connectors to make your own custom servo cables, servo extension cables, battery pack cables for plugging into an RC receiver, etc.

Pololu 1926 Futaba J Connector Pack, Female

Product Code:Pololu-Futaba-J-Connector-Female
Reward Points:2
Availability:In Stock

रo 218.00
रo 209.00
Price in reward points:218
25 or more रo 211.00
68 or more रo 209.00
95 or more रo 200.00
250 or more रo 193.00

Qty
