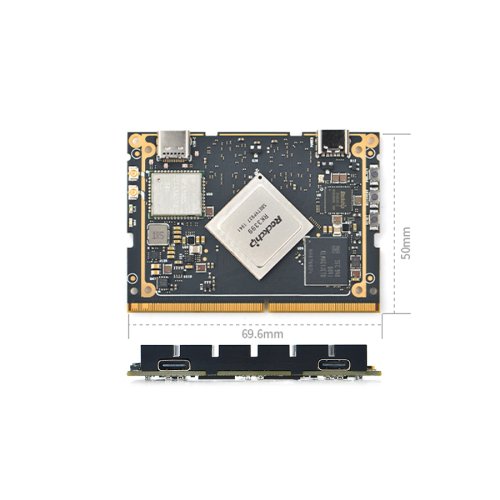

SOM-RK3399V2 is a powerful RK3399 Computer Module with 5G and 2.4G WiFi is a 260-pin high performance ARM module.

• Hardware:
  • CPU
    • Model: Rockchip RK3399
    • Number of Cores: big.LITTLE, 64-bit Dual Core Cortex-A72 + Quad Core Cortex-A53
    • Frequency: Cortex-A72(up to 2.0GHz), Cortex-A53(up to 1.5GHz)
  • GPU-Mali-T864 GPU，supports OpenGL ES1.1/2.0/3.0/3.1, OpenVG1.1, OpenCL, DX11, and AFBC
  • VPU-4K VP9 and 4K 10bits H265/H264 60fps decoding, Dual VOP, etc
  • Memory-RAM: 4GB LPDDR4
  • Storage eMMC: 16GB(regular), 32GB/64GB(optional), eMMC 5.1
  • Power Management-RK808-D PMIC, cooperated with independent DC/DC, enabling DVFS, software power-down, RTC wake-up, system sleep mode
  • Connectivity
    • Ethernet: Native Gigabit Ethernet
    • Wi-Fi: 802.11a/b/g/n/ac
    • Bluetooth: 4.1 dual-mode
    • Antenna: Dual Antenna Interface
  • Video Input-one or two 4-Lane MIPI-CSI, dual ISP, up to 13MPix/s，supports simultaneous input of dual-camera data
  • Video Output
    • HDMI: HDMI 2.0a, supports 4K@60Hz，HDCP 1.4/2.2
    • DP on Type-C: DisplayPort 1.2 Alt Mode on USB Type-C
    • LCD Interface: one eDP 1.3（4-Lane，10.8Gbps）, one or two 4-Lane MIPI-DSI
  • USB
    • USB 2.0: 2 independent native USB 2.0 Host
    • USB 3.0: 1 native USB 3.0 Host
    • USB Type-C: Supports USB3.0 Type-C and DisplayPort 1.2 Alt Mode on USB Type-C
  • PCIe PCIe x4, compatible with PCIe 2.1, Dual operation mode
  • SDIO/MMC 1x SDIO/MMC for SD Card
  • Others
    • 2 X 1.8V I2C, 1 x 3V I2C
    • 1 x 3V UART/SPI
    • 2 x PWM
    • 1 x IR-RX
    • 1 x SPDIF_TX
    • 1 x 1.8V I2S,
    • 6 x 1.8V GPIOs, 8 x 3V GPIOs
    • ADC: 3 x 1.8V ADC inputs
  • Debug 1x Debug UART, 3V level, 1500000bps
  • LED
    • 1x Power LED(Red)
    • 1x GPIO LED(Green)
  • Key
    • Power Key x1
    • Reset Key x1
    • Recovery Key x1
  • Working Temperature - -20℃ to 70℃
  • Power - DC 12V/1A(edge connector) or DV 5V/2.5A(Type-C)
