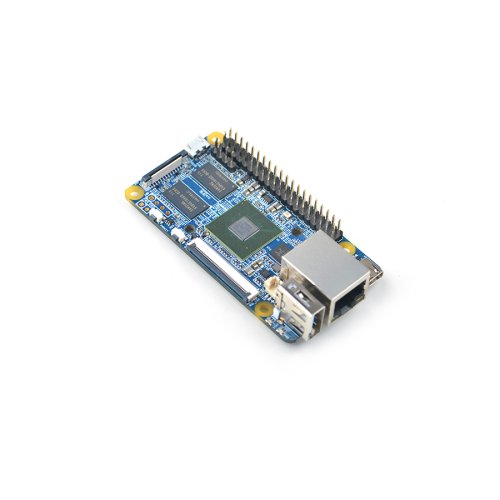

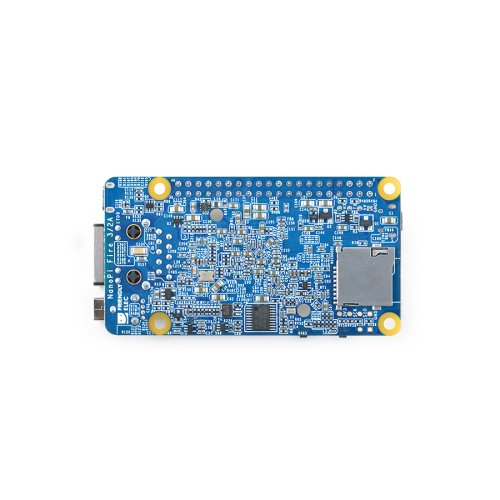

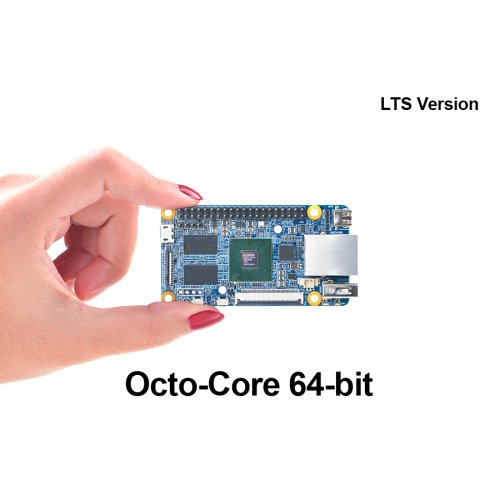

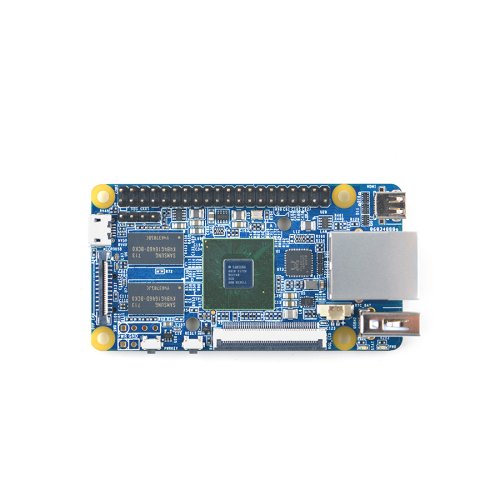

The NanoPi Fire3 is a super tiny Octa-Core Cortex-A53 ARM board. It uses Samsung's S5P6818 SoC and has onboard 1G DDR3 RAM, Gbps Ethernet, MicroHDMI port, CMOS camera interface and RGB LCD interface. Its GPIO is compatible with RPi's GPIO. It is only 75 x 40 mm.

The NanoPi Fire3 has an MCU based power management system and supports dynamic voltage control with good performance and reliability. FriendlyElec provides image files of FriendlyCore, Debian and Android for it. The FriendlyCore image has Qt-5.9 and OpenGL ES1.1/2.0, and supports video playing with hardware-decoding/encoding. It is a good choice for rapidly developing products for applications in distributed computing, artificial intelligence and embedded systems.

Lubuntu

• Lubuntu is a light-weight Ubuntu desktop system. It is based on LXDE and has the following features:
• Light-weight - it cnsumes very few CPU resources to run and will have outstanding performance when RAM is surficient. Low power consumption - compared to other systems it gets same performance with less resources.
• Neat & compact - Based on GTK+2 it has an elegant GUI with mulitple language options.
• Straightforward - its startup menu has an MS Windows alike style.
• Customizable: - users can define their own LXDE GUI. Compatible-Compatible with freedesktop.org
• The Lubuntu Desktop system provided by FriendlyElec has been optimized to support Mali400. It has drivers for Xorg and supports Hardware Cursor and OpenGLR acceleration.

Specifications:

• CPU: S5P6818, 1.4GHz
• DDR3 RAM: 1GB
• Connectivity: Gbps Ethernet port
• USB Host: USB 2.0 Type A x 1
• Debug Serial Port/UART0: 1
• microSD Slot: 1
• microUSB: 1 for data transmission and power input
• LCD Interface: 0.5 mm pitch SMT FPC seat, for full-color LCD (RGB: 8-8-8)
• HDMI: HDMI 1.4A, microHDMI(Type-D), 1080P60
• DVP Camera Interface: 0.5mm spacing FPC socket. It includes ITU-R BT 601/656 8-bit, I2C and IO
• GPIO: 2.54mm spacing 40pin, compatible with Raspberry Pi's GPIO. It includes UART, SPI, I2C, PWM, IO etc
• Button: Power Button x 1, Reset Button x 1
• LED: LED for Power Indication x 1, System LED x 1
• RTC: RTC Battery Seat
• PCB Dimension: 75 x 40mm
• Working temperature: -20℃ to 70℃
• Software Features
• OS Support: Android, Debian and FriendlyCore(Linux Kernel 4.4 + Qt5.9 + OpenGL®2.0)
• FriendlyWrt 19.07-snapshot (64-bit)

Software Features:

• UbuntuCore 16.04:
• Linux Kernel 4.4
• npi-config: system configuration utility for setting passwords, language, timezone, hostname, SSH and auto-login
• NetworkManager: manage network
• System log output from serial port
• Welcome window with basic system information and status
• Auto-login with user account "pi" with access to npi-config
• LibMali & OpenGL® ES2.0 driver supported
• Qt5.9 TLS with OpenGL ES hardware acceleration
• HD video playing with hardware decoding
• GStreamer 1.0 with VPU hardware acceleration

Package Includes:

• 1 x NanoPi Fire3
• 1 x Heatsink
• 1 x Quick Starter Guide
