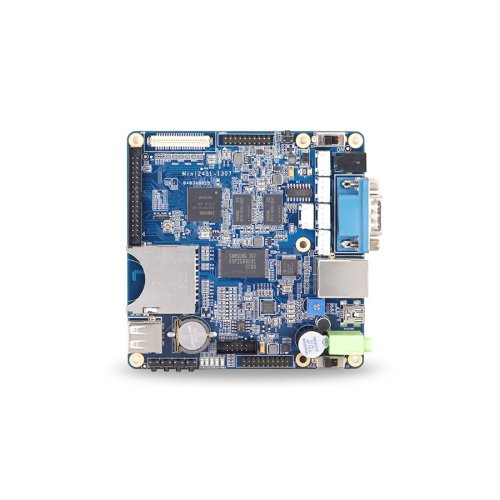

Mini 2451 SBC (Single-Board Computer) with 400 MHz Samsung S3C2451 ARM9 processor.
Specifications:
- Dimension: 100 x 100 mm
- CPU: 400 MHz Samsung S3C2451 ARM926EJ (max freq. 533 MHz)
- RAM: 128 MB, 16 bit Bus
- Flash: up to 1GB NAND Flash
- EEPROM: 256 Byte (I2C)
- Ext. Memory: SD-Card socket
- Serial Ports: 1x DB9 connector (RS232), total: 4x serial port connectors
- USB: 1x USB-A Host 1.1, 1x miniUSB Slave/OTG 2.0
- Audio Output: 3.5 mm stereo jack
- Audio Input: Condenser microphone
- Ethernet: RJ-45 10/100M (DM9000)
- RTC: Real Time Clock with battery (CR1220)
- Beeper: PWM buzzer
- Camera: 20 pin (2.0 mm) Camera interface
- LCD Interface: 41 pin connector for FriendlyARM Displays and VGA Board
- User Inputs: 4x push buttons and 1x A/D pot
- User Outputs: 4x LEDs
- Expansion: 40 pin System Bus, 34 pin GPIO (2.0 mm)
- Debug: 10 pin JTAG (2.0 mm)
- Power: regulated 5V
-
OS Support
- Windows CE 6
- Linux
Package Includes:
- 1 x Mini2451 (256M Flash) + 3.5"LCD + Standard Accessories
Mini2451 (256M Flash) + 3.5 inch LCD + Standard Accessories
- Brand: FRIENDLYARM
- Product Code: FARM-Mini2451
- Reward Points: 114
- Availability: Out Of Stock
- रo 11,385.00
-
रo 9,563.00
- Price in reward points: 11385
-
- 2 or more रo 11,294.00
- 3 or more रo 11,203.00
- 5 or more रo 11,112.00
- 15 or more रo 11,021.00
