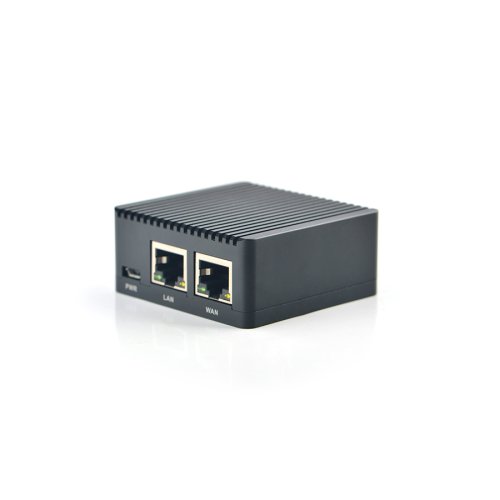

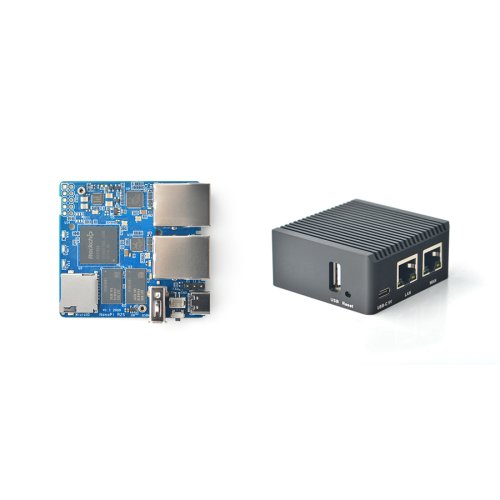

The NanoPi R2S(as "R2S") is an open source platform with dual-Gbps Ethernet ports designed and developed by FriendlyElec for IoT applications.The NanoPi R2S uses the RK3328 SoC. It has two Gbps Ethernet ports and 1G DDR4 RAM. FriendlyElec ported an OpenWrt system for it. It works with Docker CE. It is a good platform for developing IoT applications, NAS applications, smart home gateways etc.













































































































































































































Hardware Specifications :

• CPU: Rockchip RK3328, Quad-core Cortex-A53
• DDR4 RAM: 1GB
• Network：
  • Internal 10/100/1000M Ethernet Port x 1
  • USB3.0 converted 10/100/1000M Ethernet Port x 1
• USB2.0 Host: Type-A x1
• MicroSD Slot x 1
• MicroUSB: power input and USB Slave
• Debug Serial Port: 3.3V TTL, 3-pin 2.54mm pitch connector
• LED: LED x 3
• KEY: KEY x 1 programmable
• PC Size: 55.6 x 52mm
• Power Supply: DC 5V/2A
• Temperature measuring range: 0℃ to 80℃
• OS/Software: U-boot，Ubuntu-Core，OpenWrt

Network Transmission Rates :

TX	RX
WAN	941 Mbps	941 Mbps
LAN	941 Mbps	941 Mbps







Note :

• Test utility: iperf
• Use indepedent IP address section and test with a PC in simplex communication mode



Doccument :

Wiki

Package Includes :

1 x NanoPi R2S
