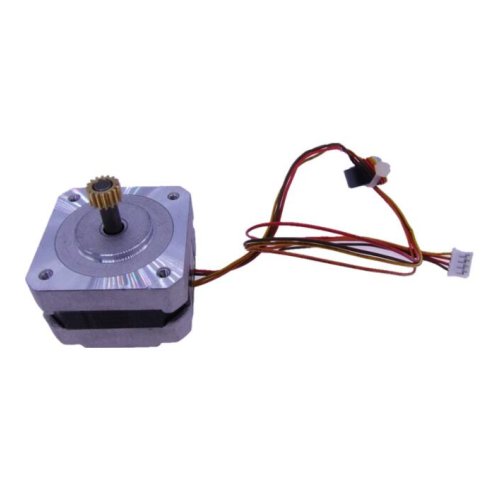

• Stepper Motor - BJ07 12V-24V

BJ07 12V-24V metal stepper motor and Four wire two phase stepper motor

Features :

  • Motor size : side 42mm * height 28mm (excluding the length of the shaft)
  • Step Angle: 1.8 degrees
  • Shaft diameter: 5mm
  • Shaft length: 15mm
  • Motor mounting screw hole spacing: 31mm, M3 screw hole
  • Voltage: 12V-24V
  • Motor wire length:  300mm long.

QQ20180713135837

QQ20180713135847

TB2I7yddYuWBuNjSszgXXb8jVXa_!!1647850999





TB2VzKcdYuWBuNjSszgXXb8jVXa_!!1647850999



Write a review

Please login or register to review

Stepper Motor - BJ07 12V-24V

  • Product Code:PRC-Stepper-Motor-BJ07-12V-24V
  • Reward Points:7
  • Availability:In Stock
  • रo 742.00

  • Price in reward points:742
