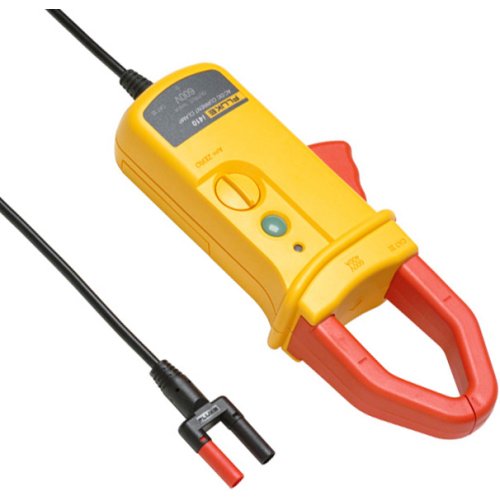

Fluke current clamps extend the current ranges of Fluke tools. The Fluke i1010 AC/DC current clamp is highly reliable, measures 1 A to 1000 A and provides accurate current reading without breaking the circuit. This clamp measures both ac and dc current with a large jaw, battery-powered Hall-effect probe that gives access to difficult to reach areas. Compatible with most Fluke multimeters.
- The Fluke i1010 AC/DC current clamp is a battery-powered Hall-effect probe that extend the current ranges of Fluke tools, measuring DC current from 1 A to 1000 A and AC current from 1 A to 600A.
- Provides accurate current reading without breaking the circuit.
- Compatible with most Fluke multimeters.
- CAT III 600 V safety rating
| Specifications | |
| Measurement type | Hall sensor |
| Nominal current range |
600 A, AC 1000 A, DC |
| Continuous current range |
1 A - 600 A, AC 1 A - 1000 A, DC |
| Maximum non-desctructive current | 1000 A |
| Lowest measureable current | 0.5 A |
| Basic accuracy |
2% + 0.5 A (% reading + floorspec) |
| Useable frequency | DC - 10 kHz |
| Output level(s) | 1 mV/A |
| Zero error adjustment | Yes |
| Safety Specifications | |
| Safety | CAT III, 600 V |
| Maximum voltage | 600 V |
| Mechanical and General Specifications | |
| Warranty | 1 year |
| Battery life | 9 V, 60 h |
| Maximum conductor diameter |
30 mm 2 x 25 mm |
| Output cable length | 1.6 m |
| Shrouded banana plugs | Yes |
Documents:
- i410/i1010 | Instruction sheet
- i410/i1010 | Instruction sheet supplement
- i410/i1010 | Statement of memory volatility
Package Includes:
- 1 x Fluke i1010 AC/DC Current Clamp
Fluke i1010 AC/DC Current Clamp
- Brand: Fluke
- Product Code:SP-Fluke-i1010-Current-Clamp
- Reward Points:456
- Availability:In Stock
-
रo 45,626.00
- Price in reward points:45626
