The unique Fluke 9062 provides rotary field and motor rotation indication with the benefits of contact-less detection. Purpose made for commercial and industrial environments, the Fluke 9062 provides rapid indication of 3 phase rotation using test leads supplied or can be used to determine motor rotation on synchronous and asynchronous 3 phase motors. The contact-less detection is ideal for use on motors where the shaft is not visible. The included test probes have a variable clamping range for safe contact, also in industrial sockets.
Key features:
- 3 phase indication
- Indication of phase rotation
- Indication of motor rotation direction
- Contact free determination of the rotation direction of running motors
Specifications:
Technical specifications | |
Voltage range | Up to 400 V |
Phase display | 120-400 V AC |
Frequency range | 2-400 Hz |
Operating timer | Continuous |
Environmental specifications | |
Operating temperature | 0 °C to 40 °C |
Operating altitude | Up to 2000m |
Humidity (without condensation) | 15% to 80% |
Dust/water resistance | IP 40 |
Safety specifications | |
Electrical safety | EN 61010, |
EN 61557-7 | |
Overvoltage category | CAT III, 300 V |
Mechanical and general specifications | |
Size | 124 x 61 x 27 mm |
Weight | 1 x 9 V |
Batteries | 1 x 9 V |
Documents:
Package Includes:
- 1 x Fluke 9062 Motor and Phase Rotation Indicator
- 3 x Test leads
- 3 x Test probes
- 3 x Alligator clips
- 1 x Battery, 9 V
- 1 x User manual

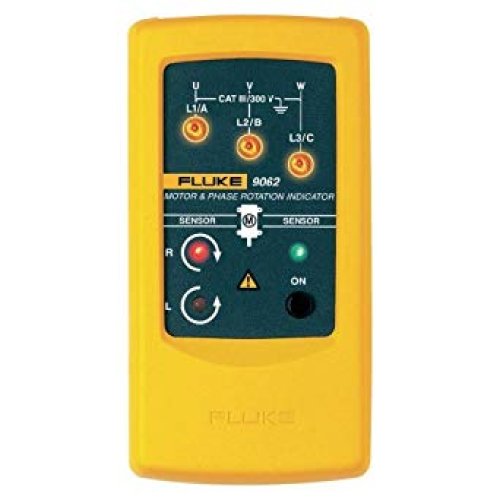

Fluke 9062 Motor and Phase Rotation Indicator
- Brand: Fluke
- Product Code:SP-Fluke-9062-Indicator
- Reward Points:264
- Availability:In Stock
-
रo 26,392.00
- Price in reward points:26392
