Flipper Zero is readily in stock

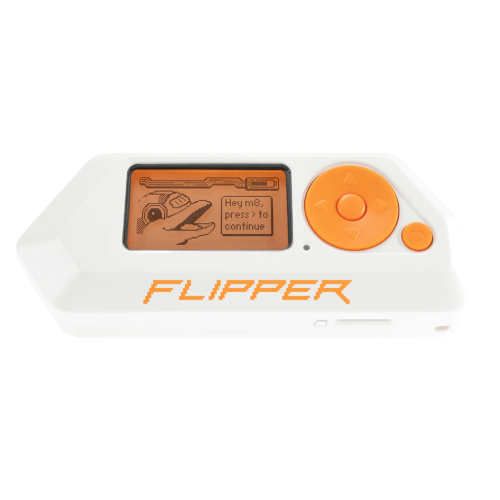

Flipper Zero is a portable multi-tool for pen-testers and geeks in a toy-like body. It loves researching digital stuff like radio protocols, access control systems, hardware, and more. It's fully open-source and customizable, so you can extend it in whatever way you like

Flipper Zero technical specification and scheme

Specifications:

  • MCU (Microcontroller unit)
    • Model: STM32WB55RG
    • ARM Cortex-M4 32-bit 64 MHz (application processor)
    • ARM Cortex-M0+ 32 MHz (network processor)
    • Flash: 1024 KB
    • SRAM: 256 KB
  • Display
    • LCD Monochrome
    • Resolution: 128x64 px
    • Controller: ST7565R
    • Interface: SPI
    • Diagonal Size: 1.4“
  • Battery
    • LiPo 2000 mA⋅h
    • 7 days approximately

  • Sub-1 GHz module
    • Chip: TI CC1101
    • TX Power: 0 dBm max
    • Frequency bands (depends on your region):
    • ● 315 MHz
    • ● 433 MHz
    • ● 868 MHz
    • ● 915 MHz
  • NFC
    • Frequency: 13.56 MHz
    • Supported cards:
    • ● ISO-14443A/B
    • ● NXP Mifare® Classic®, Ultralight®, DESFire® etc.
    • ● FeliCa™
    • ● NFC Forum protocols
  • RFID 125 kHz
    • Frequency: 125 kHz
    • Modulation: AM, PSK, FSK
    • Supported cards:
    • EM400x, EM410x, EM420x
    • HIDProx, Indala

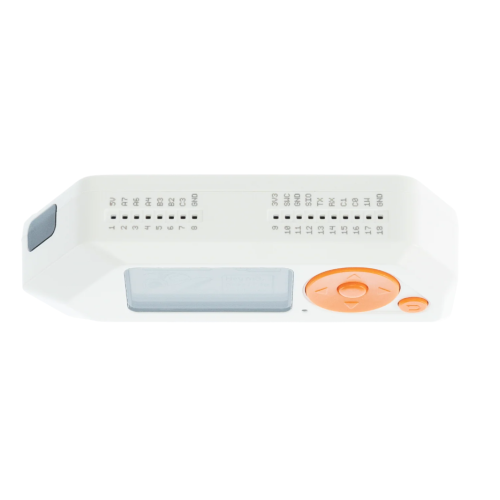

  • GPIO
    • 3.3 CMOS Level
    • Input 5V tolerant
    • Up to 20 mA per digital pin

  • Bluetooth LE 5.0
    • TX Power: 0 dBm max
    • RX Sensitivity: -96 dBm
    • Data rate: 2 Mbps
  • Micro SD
    • Up to 64GB MicroSDHC
    • Read/Write speed: up to 5 Mbit/s

  • Buzzer
    • Frequency: 100-2500 Hz
    • Sound Output: 87 dB
    • Type: Coin
  • Vibration Motor
    • Force value: 30 N
    • Speed: 13500 rpm

  • Infrared
    • Force value: 30 N
    • Speed: 13500 rpm
  • Infrared
    • TX/RX range: 800-950 nm
    • TX power: 300 mW
  • iButton 1-Wire
    • Operate modes: Reader/Writer/Emulator
    • Supported protocols:
    •     Dallas DS1990A
    •     CYFRAL
  • Control
    • 5-button joystick
    • Back button
    • Reboot — Back+Left buttons for 2 seconds
  • USB
    • 1x USB 2.0 port, type C
    • USB device
    • Charging
  • Physical
    • Size: 100 x 40 x 25 mm
    • Weight: 102 grams
    • Body materials: PC, ABS, PMMA
    • Operating temperature: 0 ~ 40 °C

Package Includes:

  • 1 x Flipper Zero

Write a review

Please login or register to review

Flipper Zero

  • Brand: Flipper
  • Product Code:FLP-Flipper-Zero
  • Reward Points:279
  • Availability:In Stock
  • रo 27,721.00

  • Price in reward points:27945

  • 2 or more रo 27,498.00
  • 3 or more रo 27,274.00
  • 6 or more रo 27,051.00
