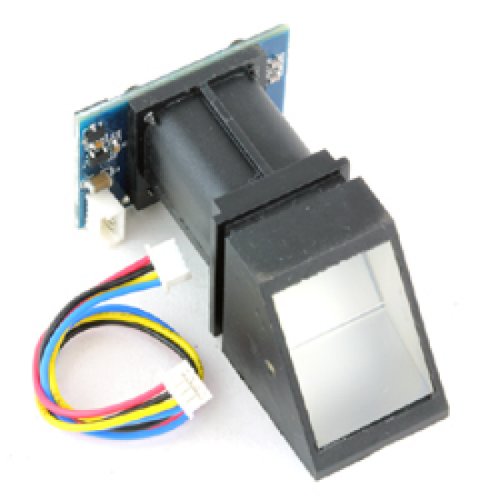

• Finger Print Reader Module - FZ1035
Optical Fingerprint Reader Sensor  Module Fingerprint Lock for Arduino

Specifications:
  • Supply voltage: DC 3.6 ~ 6.0V
  • Supply Current: Current: <120mA
    •    Peak current: <140mA
  • Fingerprint image time: <1.0 seconds
  • Window Size: 14 X18 mm
  • Signature files: 256 bytes
  • Template files: 512 bytes
  • Storage capacity: 1,000
  • False Accept Rate (FAR): <0.001% (security level is 3:00)
  • False Reject Rate (FRR): <1.0% (security level is 3:00)
  • Search time: <1.0 seconds (1:500, the mean)
  • Host Interface: UART (TTL logic level)
  • Communication baud rate (UART): (9600 X N) bps where N = 1 ~ 12 (default   value N = 6, ie 57600bps)
  • Working Environment: Temperature: -20 to +50
    •    Relative Humidity: 40% RH to 85% RH (non-condensing)
  • Storage environment: Temperature: -40 to +85
    •    Relative humidity: <85% H (non-condensing)
  • Dimension (L X W X H): 56 X 20 X 21.5mm


Write a review

Please login or register to review

Finger Print Reader Module - FZ1035

  • Product Code:PRC-Finger-Print-Lock-FZ1035
  • Reward Points:38
  • Availability:Out Of Stock
  • रo 3,785.00

  • Price in reward points:3785
