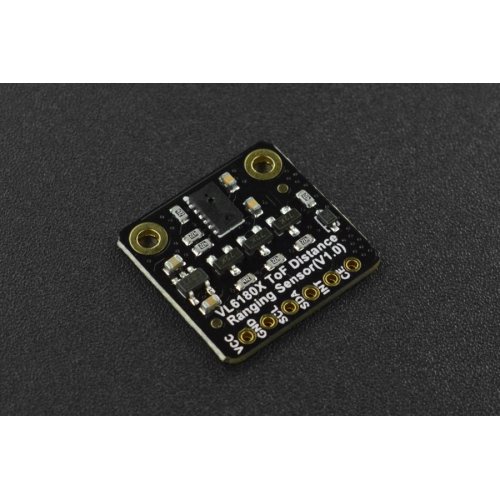

The STMicroelectronics VL6180X Time of Flight Ranging Sensor embeds ST’s patented FlightSense technology that allows distance to be accurately measured independent of target reflectance. The sensor is rated to perform ranging measurements of 5-100mm, but it can provide readings up to 200mm in a good environment. Besides, VL6180X is also equipped with an ambient light sensor, so basically, this is a sensor that combines proximity ranging and ambient light level measurement capacities into a single package.

Features:

• Simultaneous measurement of distance and ambient light
• VCSEL light source
• Strong anti-interference

Specifications:

• Power Supply Voltage: 3.3V~5V
• Operating Current: ＜5mA
• Measuring Distance: 5-100mm
• Emitter: 940nm invisible laser (VCSEL)
• I2C Address: 0x29
• Operating Temperature Range: -20℃~85℃

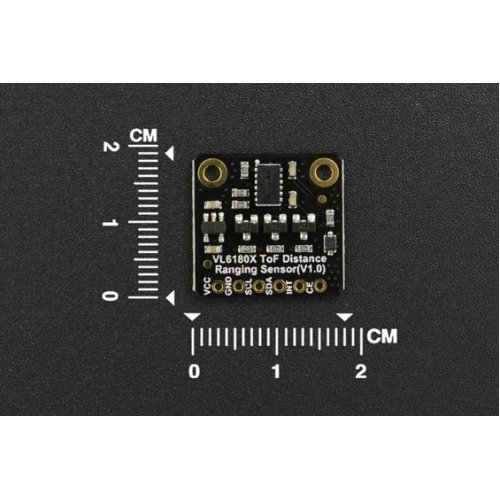

• Product Size: 19*18mm / 0.75*0.71 inch

Documents:

• Product wiki

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

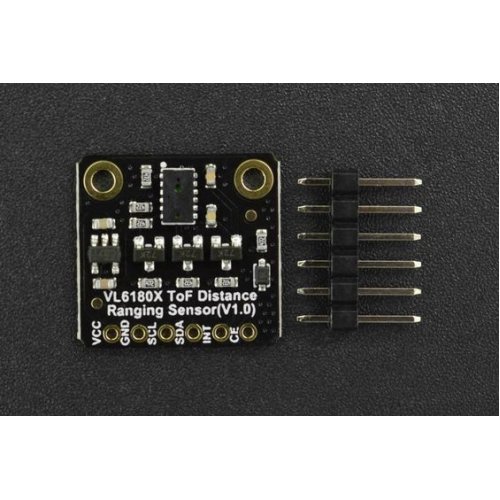

• 1 x Fermion: VL6180X ToF Distance Ranging Sensor (Breakout)
• 1 x 2.54-6P Black Single Row Pin Header
