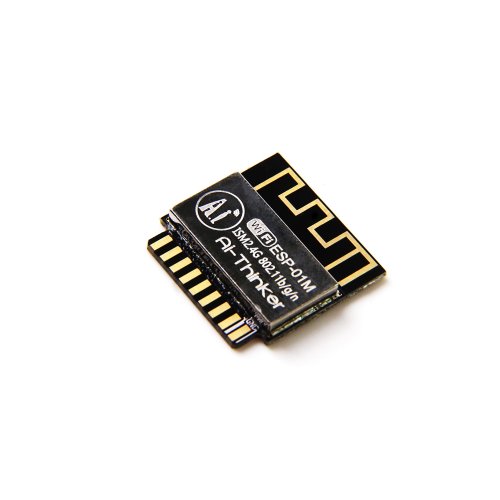

ESP-01M can be widely used in various occasions for networking, home automation, industrial wireless control, baby monitors, wearable electronics, infinite position sensing device, wireless positioning system, signal and other networking applications, networking applications is the ideal solution.
ESP-01M uses the DIP plug-in package, the unique design, so that it can be flexible docking to existing products, especially suitable for automation, large-scale, modern production of low cost, convenient application in various networking hardware terminal applications.
Features
-
The smallest 802.11b/g/n Wi-Fi SoC module
-
Uses low power 32bit CPU and compatible with application processor
-
Main frequency up to 160MHz
-
Built in 10Bit high precision ADC
-
Support UART/GPIO/PWM/ADC interface
-
Integrate Wi-Fi MAC/BB/RF/PA/LNA
-
Support multiple sleep modes
-
Standby power consumption as low as 1.0mW
-
Embedded Lwip protocol stack
-
Support STA/AP/STA+AP work model
-
Support Smart Config/AirKiss
-
Series Rate up to 4Mbps
-
Universal AT instruction
-
Support serial local upgrade and remote firmware upgrade
-
Small size 18*18*2.8mm
Technical Details
| Weight | G.W 4g N.W 1.5g |
| Battery | Exclude |
| Support Interface | UART/GPIO/ADC/PWM |
| SPI Flash | 1MB |
| I/O Put | 11 |
| Series Rate | Support 300~4608000 bps, default 115200 bps |
| RF Range | 2412~2484MHz |
| Antenna | Embedded PCB Antenna, gain 2dBi |
| Transmitted power | |
| 802.11b | 16±2dBm（@11Mbps） |
| 802.11g | 14±2dBm（@54Mbps） |
| 802.11n | 13±2dBm（@HT20，MCS7） |
| Receiver sensitivity | |
| CCK, 1 Mbps | -90dBm |
| CCK, 11 Mbps | -85dBm |
| 6 Mbps (1/2 BPSK) | -88dBm |
| 54 Mbps (3/4 64-QAM) | -70dBm |
| HT20, MCS7 (65 Mbps, 72 Mbps) | -67dBm |
| Power waste | |
| Continue sending=>average value | ~71mA, Max: 300mA |
| Modem Sleep | ~20mA |
| Light Sleep | ~2mA |
| Deep Sleep | ~0.02mA |
| Security | WEP/WPA-PSK/WPA2-PSK |
| Power Supply Range | |
| Voltage | 3.0V~3.6V |
| Current | >300mA |
| Working Temperature | -20°C~85°C |
| Storage environment | -40°C~90°C,<90%RH |
Part List
| ESP 01M Module | 1 |
Documents
ESP8285 Wi-Fi SoC Module
- Brand: Espressif Systems
- Product Code:Seeed-ESP01M
- Reward Points:3
- Availability:In Stock
-
रo 332.00
- Price in reward points:332
