- Cortex-M4 core at 100MHz
- 2M bytes on-board SPI flash and 512K bytes on-chip flash
- 128K bytes RAM
- Operation voltage:3.0V~3.6V
- 22 GPIOs
- JTAG/SWD debug interface
- 802.11b, 802.11g, 802.11n (single stream)
- WEP, WPA/WPA2 PSK/Enterprise
- 16.5dBm@11b，14.5dBm@11g 13.5dBm@11n
- Receiver Sensitivity: -87 dBm
- Station, Soft AP and Wi-Fi direct
- Support EasyLink

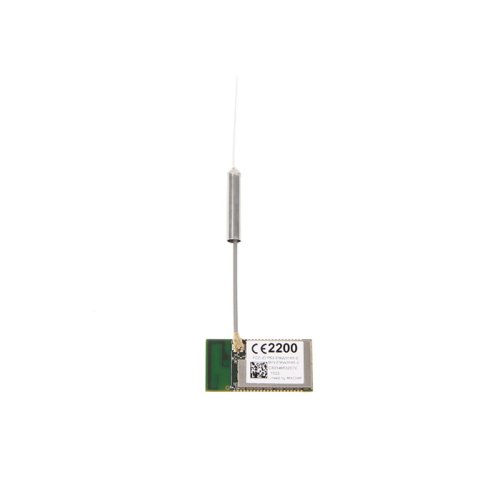

- On-board PCB antenna，IPEX connector for external antenna
- CE，FCC compliant
- Building Automation / Access Control
- Smart home appliances
- Medical/Health Care
- Industrial Automation Systems
- Point Of Sale system (POS)
- Auto electronics

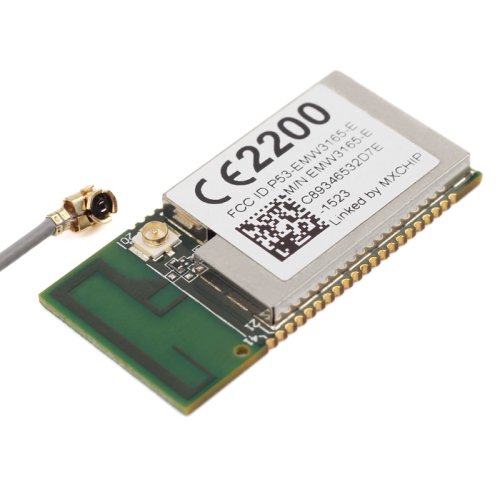

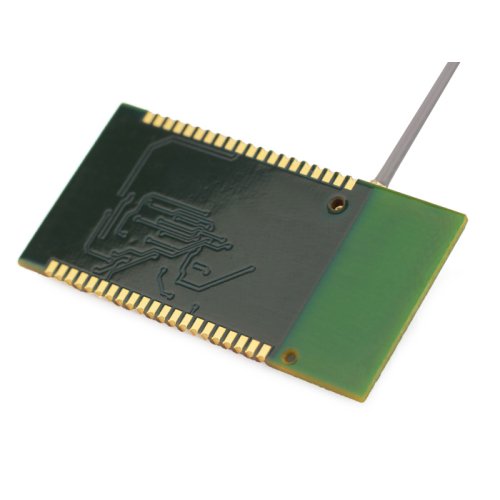

EMW3165-Cortex-M4 based WiFi SoC Module
- Product Code:Seeed-EMW3165-Cortex-M4-Wifi-SoC
- Reward Points:6
- Availability:In Stock
-
रo 599.00
- Price in reward points:599
Available Options
