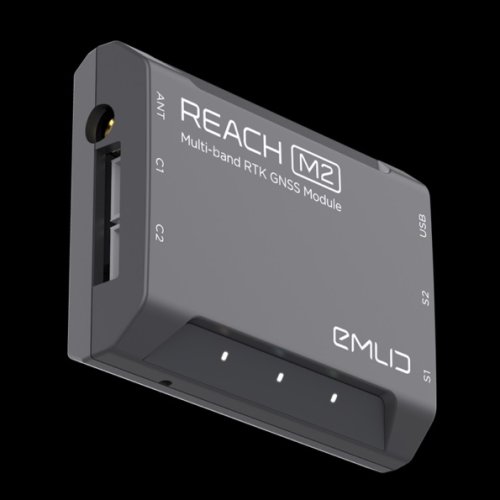

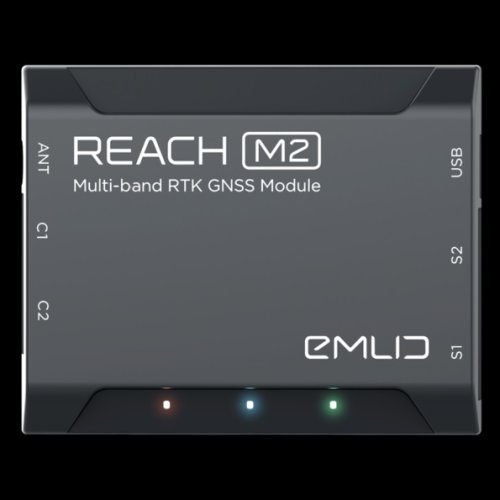

Multi-band RTK GNSS module for precise navigation and UAV mapping.

Specifications:

Electrical:
- Input voltage on USB and JST GH: 4.75 - 5.5 V
- Antenna DC bias: 3.3 V
- Avg. consumption @5V: 200 mA
Positioning:
- Static horizontal: 4 mm + 0.5 ppm
- Static vertical: 8 mm + 1 ppm
- Kinematic horizontal: 7 mm + 1 ppm
- Kinematic vertical: 14 mm + 1 ppm
Connectivity:
- LoRa radio (sold separately)
- Frequency range: 868/915 MHz
- Distance: Up to 8 km
- Wi-Fi: 802.11b/g/n
- Bluetooth: 4.0/2.1 EDR
- Ports: USB, UART, Event
Data:
- Corrections: NTRIP, VRS, RTCM3
- Position output: NMEA, LLH/XYZ
- Data logging: RINEX with events with update rate up to 20 Hz* *coming with a software update, up to 10 Hz now
- Internal storage: 16 GB
GNSS:
- Signal tracked: GPS/QZSS L1C/A, L2C, GLONASS L1OF, L2OF, BeiDou B1I, B2I, Galileo E1-B/C, E5b
- Number of channels: 184
- Update rates: 20 Hz* GPS / 10 Hz GNSS *coming with a software update, up to 10 Hz now
- IMU: 9DOF
Mechanical:
- Dimensions: 56.4 x 45.3 x 14.6 mm
- Weight: 35 g
- Operating tº: -20…+65 ºC
