GNSS
- GPS, GLONASS, BeiDou, Galileo, QZSS and SBAS
-
Long range radio
- External LoRa radio module: 868/915 MHz, range up to 8 km. Sold separately.
-
Electrical:
- Input voltage on USB and JST GH: 4.75 - 5.5 V
- Antenna DC bias: 3.3 V
- Avg. consumption @5V: 200 mA
-
Positioning:
- Static horizontal: 5 mm + 1 ppm
- Static vertical: 10 mm + 2 ppm
- Kinematic horizontal: 7 mm + 1 ppm
- Kinematic vertical: 14 mm + 2 ppm
-
Connectivity:
- LoRa radio (sold separately)
- Frequency range: 868/915 MHz
- Distance: Up to 8 km
- Wi-Fi: 802.11b/g/n
- Bluetooth: 4.0/2.1 EDR
- Ports: USB, UART, Event
-
Data:
- Corrections: NTRIP, VRS, RTCM3
- Position output: NMEA, LLH/XYZ
- Data logging: RINEX with events with update rate up to 14 Hz
- Internal storage: 8 GB
-
GNSS:
- Signal tracked: GPS/QZSS L1, GLONASS G1, BeiDou B1, Galileo E1, SBAS
- Number of channels: 72
- Update rates: 14 Hz / 5 Hz
- IMU: 9DOF
-
Mechanical:
- Dimensions: 56.4 x 45.3 x 14.6 mm
- Weight: 35 g
- Operating tº: -20…+65 ºC
- 1 x Reach M+
- 1 x USB cable
- 1 x USB-OTG cable
- 1 x JST-GH 6-pin to jumper pin cable
- 1 x JST-GH 5-pin to jumper pin cable
| Electrical Specifications | |
| Input Voltage | 4.75 - 5.5 V |
| Maximum Operating Temperature | -20…+65 ºC |
| Physical Attributes | |
| Weight | 35 g |
| Dimensions | 56.4 x 45.3 x 14.6 mm |

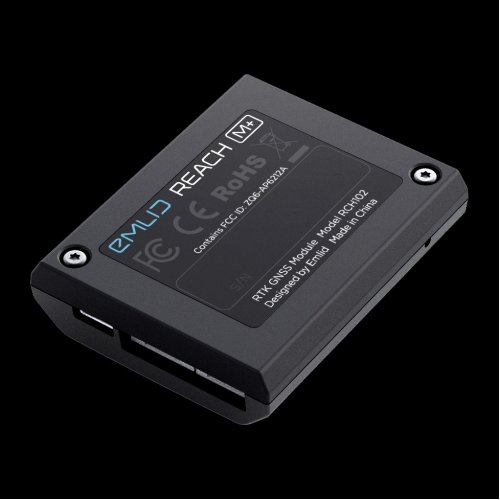

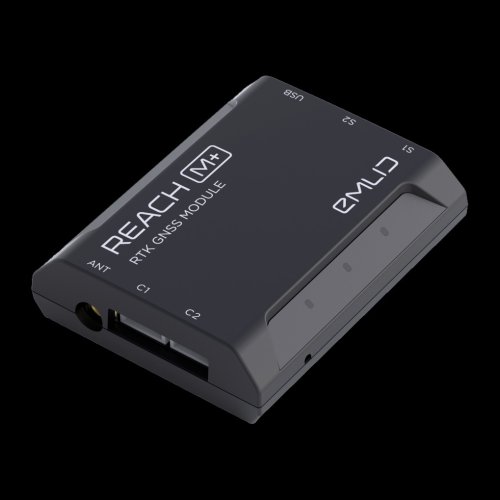

Reach M+
- Brand: Emlid
- Product Code:MLD-Reach-M-Plus
- Reward Points:365
- Availability:Order now and get it in 15 days
-
रo 36,570.00
- Price in reward points:36570
