Supercapacitors have characteristics ranging from traditional capacitors and batteries. As a result, supercapacitors can be used like a secondary battery when applied in a DC circuit. These devices are best suited for use in low voltage DC hold-up applications such as embedded microprocessor systems with flash memory.
HV Series Supercapacitors, also known as Electric DoubleLayer Capacitors (EDLCs), are intended for high energy storage applications.
Features:
- Wide range of temperature from −25°C to +60°C and −25°C to +70°C
- Maintenance free
- Maximum operating voltages of 2.5 and 2.7 VDC
- Highly reliable against liquid leakage
- Lead-free and RoHS compliant
Specifications:

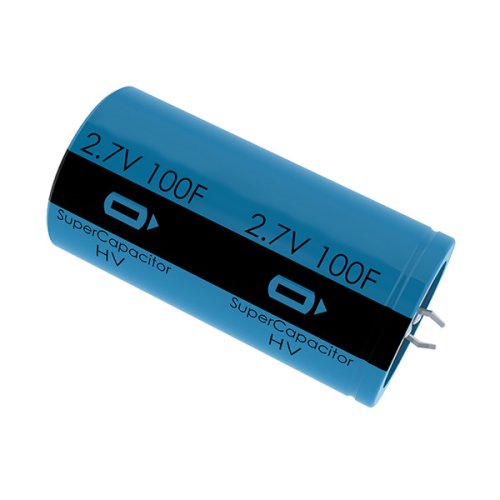

HVZ0E107NF - LT
| Capacitance | 100F |
| Capacitance Tolerance | 30% |
| Voltage DC | 2.7 VDC |
| Temperature Range | -25/+60°C |
| Rated Temperature | 60°C |
| Resistance | 30 mOhms (1kHz) |
| Discharge Current |
81 mAmps (30 Minutes After Charging) |
HVZ0E207NF - LT
| Capacitance | 200F |
| Capacitance Tolerance | 30% |
| Voltage DC | 2.7 VDC |
| Temperature Range | -25/+60°C |
| Rated Temperature | 60°C |
| Resistance | 30 mOhms (1kHz) |
| Discharge Current |
162 mAmps (30 Minutes After Charging) |
Dimensions:
HVZ0E107NF - LT
| D | 25mm +1mm |
| L | 50mm +2mm |
| S | 10mm +/-0.5mm |
| F | 2mm +/-0.1mm |
HVZ0E207NF - LT
| D | 35mm +1mm |
| L | 50mm +2mm |
| S | 10mm +/-0.5mm |
| F | 2mm +/-0.1mm |
Documents:
Package Includes:
- 1 x Electric Double Layer Super Capacitor HVZ0E107NF - LT / HVZ0E207NF - LT
Electric Double Layer Super Capacitor HVZ0E107NF - LT / HVZ0E207NF - LT- 2.7 VDC, -25/+60°C
- Product Code:ARO-HV-LT-SuperCap
- Reward Points:36
- Availability:In Stock
-
रo 3,601.00
- Price in reward points:3601
-
- 4 or more रo 3,572.00
- 7 or more रo 3,543.00
- 18 or more रo 3,514.00
- 35 or more रo 3,485.00
