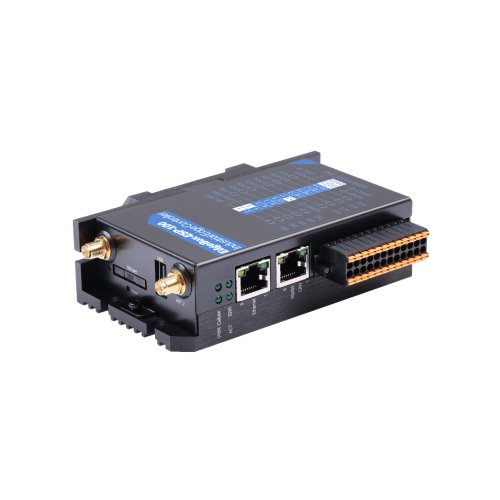

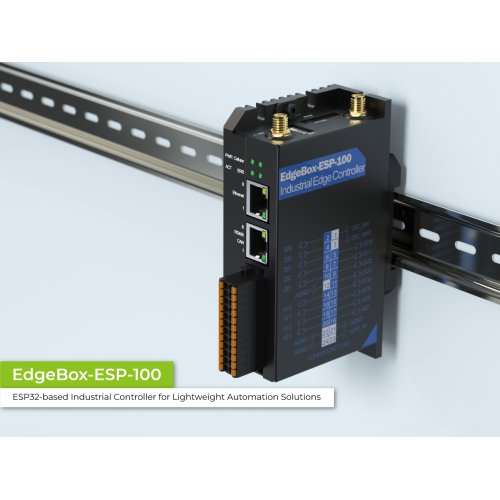

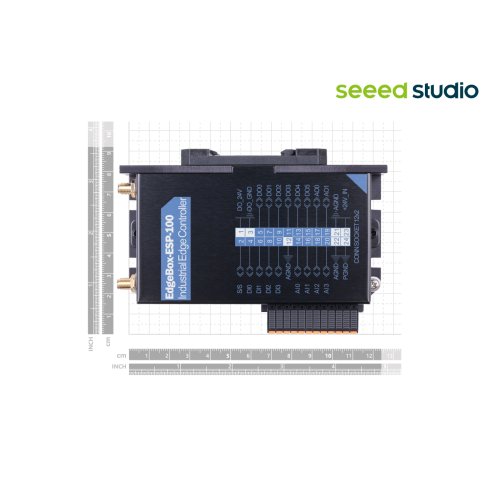

EdgeBox-ESP-100 represents the lightweight, multi-functional controller. It carries various wireless capabilities and multiple Fieldbus, which makes it an independent PLC for field automation applications, or enables it as an industrial gateway for offering the original PLC the communicated ability to network and cloud.

• EdgeBox-ESP-100 is an ESP32-based controller designed for lightweight automation solutions. It supports analog input, effectively monitoring and controlling in a remote environment, ideal for PID control loops, logic sequencing control, or a gateway with flexible wireless and field sensors expansion.
• It offers isolated CAN, RS485 Fieldbus connections, and rich IO resources for extensive facilities and sensors input, for both digital and analog signals. It is perfectly satisfactory to the PLC and field automation applications.
• Since it contains onchip Wi-Fi and BLE functions, and also includes a 4G LTE module Cellular, EdgeBox-ESP-100 can be utilized to establish an industrial gateway, enabling the original PLC to connect the network or cloud.

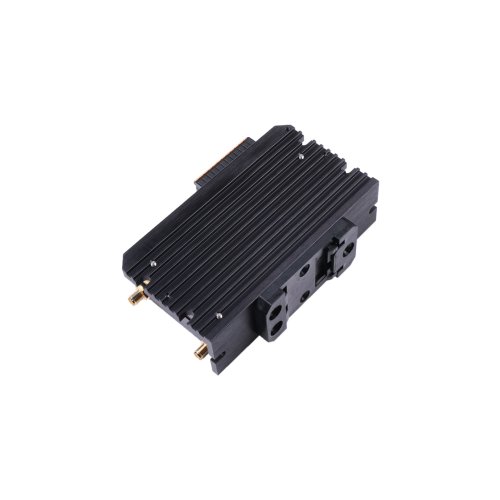

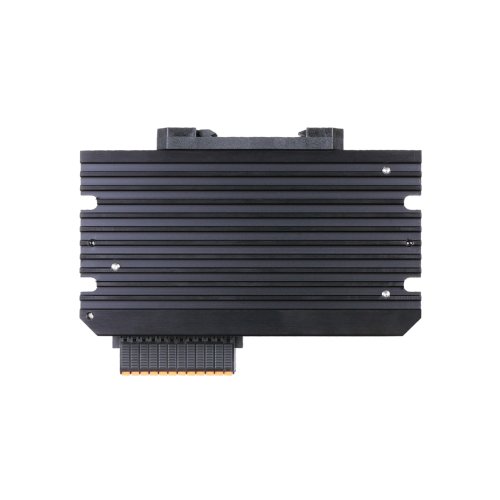

• This portable box comes with rugged hardware and electrical design, by which it maintains its function in a wide temperature range and provides high surge and short circuit protection, for diverse deployment methods based on your business.

Features:

• Multi-Fieldbus Support: CAN, RS485, Ethernet
• Multi-wireless Capability: On-chip Wifi, BLE connectivity; built-in Cellular 4G LTE module
• Reliable Hardware Design: Rugged, maintenance-reduced structure
• Reliable Electrical Design: High isolation, High surge, and short circuit protection
• IEC 61131-3 compliant programs support (under development)
• Programmable with ESP-IDF

Applications:

• SCADA
• Industrial Controller
• Proportional, Integral, and Derivative (PID) control loops;
• Logic Sequencing Control
• Industrial Gateway

Specifications:

• Basic
• CPU:ESP32S3
• Memory: 512KB + 8MB RAM
• Storage: 16MB Flash
• Wireless
• WiFi: on-chip 2.4 GHz
• Bluetooth: on-chip Bluetooth 5.0, BLE
• Cellular: 4G - A7670G SIMCom LTE Cat 1 module
• LoRa: Supported*

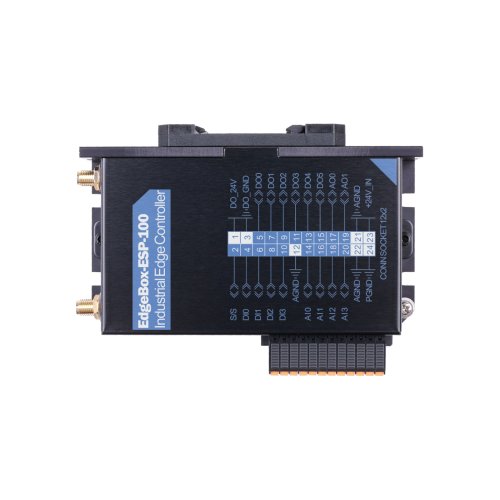

• Interface
• Ethernet: 100M RJ45 *1
• USB: USB2.0 A*1
• CAN BUS: CAN BUS *1 (Isolated)
• RS Serial: RS485 *1 (Isolated)
• Digital Input: 4 (Isolated) onboard, DC input Voltage - 24V
• Digital Output: 6 (isolated), Recommended Voltage - 24V
• Analog Input: 4 (Isolated), Input: 0 ~ 20 mA default, 0-10V optional
• Analog Output: 2 (Isolated), Output: 0 ~ 5 V
• Power Supply: 10.8 ~ 36 V
• Extra features:
• RTC: RTC
• Encryption Chip: Atecc608a(optional)
• Operation temperature: -20 to +60 °C
• Certification: RoHS, CE, FCC, UKCA

Note:

• The box supports LoRaWAN® communication but requires soldering to replace the 4G module. If you want to customize it in LoRaWAN® communicating or customize features marked as 'Optional' , feel free to email us at [email protected].

Documentation:

• 4G Module doc
• WIKI


Package Includes:

• 1 x EdgeBox-ESP-100-Industrial Edge Controller, WiFi, BLE, 4G LTE, DIO, AIO, Ethernet, CAN, RS485
