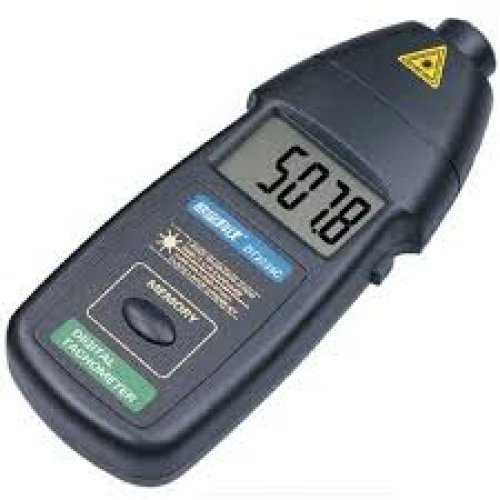

• Digital Tachometer - DT2234C

tachometer (revolution-countertachrev-counterRPM gauge) is an instrument measuring the rotation speed of a shaft or disk, as in a motor or other machine. The device usually displays the revolutions per minute (RPM) on a calibrated analogue dial, but digital displays are increasingly common.Tachometer is a device that measures speed. It is by arbitrary convention that in the automotive world one is used for engine and the other for vehicle speed. In formal engineering nomenclature, more precise terms are used to distinguish the two.

Features:

  • Photo Tachometer DT2234C (Laser) is applicable to the product departments of motor, fan, paper-product, plastics, chemical fiber, washing-machine, automobile airplane, steamer etc.
  • 5 digits 18mm (0.6") LCD
  • Accuracy: +/-(0.05%+1 digit)
  • Sampling Time: 0.5sec(over 120RPM)
  • Range Select: Auto-Ranging
  • Memory: Max. value, Min. value, Last value
  • Measuring Range: 2.5~99,999RPM
  • Resolution: 0.1RPM(2.5~999.9RPM)
  • 1RPM(over 1,000RPM)
  • Detecting Distance: 50~500mm
  • Battery: 3x1.5V AA battery(DT2234A)
  • 3x1.5V AAA battery(DT2234C)
  • Time Base: 6MHz Quartz crystal
  • Time Base Accuracy: 10x10-6(0~50C)
  • Power Consumption: Approx 40mA
  • Dimension: 160Lx72Wx37H(mm) (6.3x2.84x1.46 inch) (DT2234A)
  • 184Lx76Wx30H(mm) (7.25x3x1.2 inch)  (DT2234C)





Write a review

Please login or register to review

Digital Tachometer - DT2234C

  • Product Code:PRC-Digital-Tachometer-DT2234C
  • Reward Points:23
  • Availability:Out Of Stock
  • रo 1,980.00

  • Price in reward points:2285
