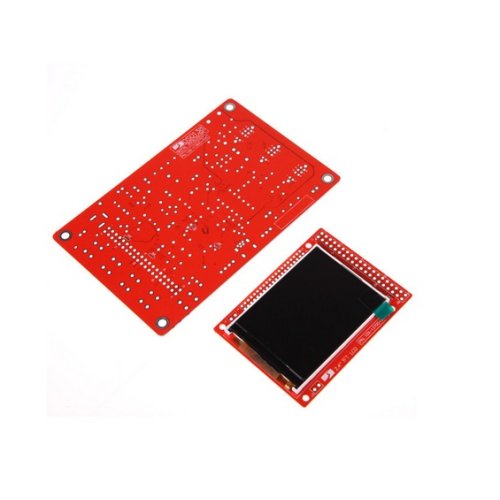

Do it yourself Oscilloscope DSO138..
  • Adopt 2.4 inches color screen and STM single chip micyoco
  • Provide the source code to make a secondary development
  • Available rising or falling edge triggering
  • Adjustable triggering level position with the instructions
  • Come with 1Hz /3.3V square wave test signal source
  • Adjustable vertical displacement with the instructions
  • Used as ARM test development board for circuit operation
Function:

1. Digital display with waveform parameter: Include frequency, period, pulse width, duty ratio, MAX./MIN./AVG./Peak-Peak/virtual values.
2. HOLD function: Freeze the waveform display at any time.
3. Negative delay: Observe previous trigger waveform.
4. Automatic/ Conventional/ Single trigger mode: Catch the instantaneous waveform.

Specifications:
  • Weight: 121g
  • Size: (PCB) 117 * 76mm
  •        (Screen) 52 * 40mm
  • Supply Voltage: DC 9V
  • Maximum Real-time Sampling Rate: 1Msps
  • Accuracy: 12Bit
  • Sampling Buffer Depth: 1024 bytes
  • Analog Bandwidth: 0-200KHz
  • Vertical Sensitivity: 10mV/ Div - 5V/ Div (1-2-5 progressive manner)
  • Input Impedance: 1MΩ
  • Maximum Input Voltage: 50Vpp (1: 1 probe)/ 400Vpp (10: 1 probe)
  • Coupling Modes: DC / AC / GND
  • The Horizontal Time Base Range: 10 microseconds / Div - 50s / Div (1-2-5 progressive manner)

Includes

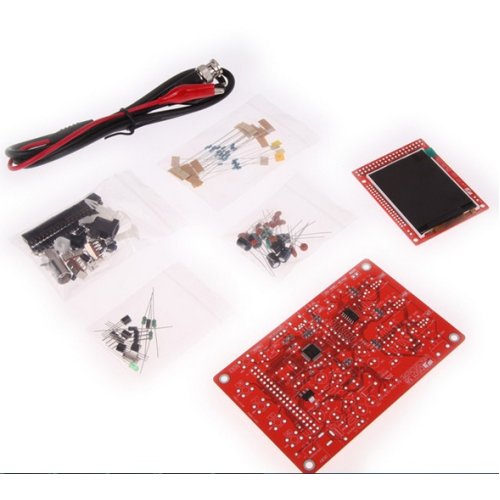

  • DIY Oscilloscope Kit
  • Probes

Write a review

Please login or register to review

Oscilloscope - DSO138

  • Product Code:PRC-138-Oscilloscope-DIY
  • Reward Points:26
  • Availability:Out Of Stock
  • रo 2,000.00
  • रo 1,375.00

  • Price in reward points:2585
