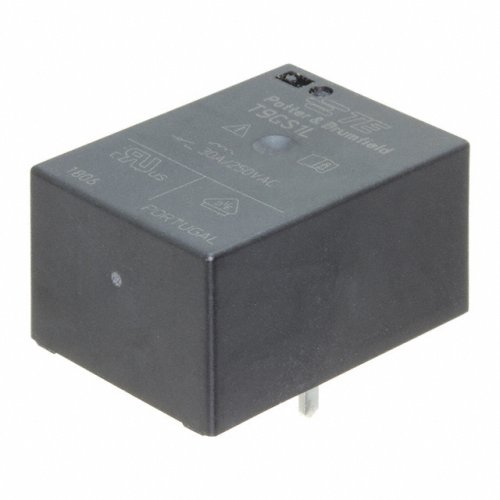

General Purpose Power Relay, DC, Monostable, 1 Form A SPSTNO, 30 A Contact Rating, 24 VDC Coil Voltage, Potter & Brumfield T9G

Relay & Contactor Type: General Purpose Power Relay

• Contact Current Rating: 30 A
• Contact Arrangement: 1 Form A SPST-NO
• Coil Magnetic System: Monostable
• Current Type: DC

Features:

Product Type Features

• Relay & Contactor Type General Purpose Power Relay

Configuration Features

• Contact Number of Poles 1
• Coil Special Features UL Coil Insulation Class F
• Contact Arrangement 1 Form A SPST-NO

Electrical Characteristics

• Insulation Initial Dielectric Between Open Contacts 1500 Vrms
• Contact Switching Voltage (Max) 480 VAC
• Contact Switching Load (Min) 100mA @ 12V
• Coil Resistance 640 Ω
• Contact Current Rating 30 A
• Contact Voltage Rating 250 VAC
• Coil Power Rating DC .9 W
• Insulation Initial Dielectric Between Contacts & Coil 4000 Vrms

Body Features

• Enclosure Type Flux Resistant Automatic Solder Capable &
• Washable

Contact Features

• Contact Material AgSnO

Termination Features

• Main Termination & Connection Type Solder Pins
• Coil Termination & Connection Type Solder Pins

Mechanical Attachment

• Product Mounting Feature Type Locating Post
• Product Mount Type Board Mount

Dimensions

• Product Width 21.5 mm[.846 in]
• Product Length 29 mm[1.14 in]
• Product Height 15.7 mm[.618 in]

Usage Conditions

• Operating Temperature Range -40 – 105 °C[-40 – 221 °F]
• Environmental Category of Protection RTIII
• Environmental Ambient Temperature (Max) 105 °C[221 °F]

Operation/Application

• Solder Process Wave Solder Capable
• Current Type DC
• Coil Magnetic System Monostable

Packaging Features

• Packaging Method Carton & Tube

Other

• Coil Power Rating Class .8 – 1 W
• Contact Current Class 20 – 30 A
• Height Class (Mechanical) 15 – 16 mm
• Length Class (Mechanical) 25 – 30 mm
• Width Class (Mechanical) 20 – 25 mm

Documentations:

• Datasheet

Package Includes:

• 1 x T9GS1L14-24
