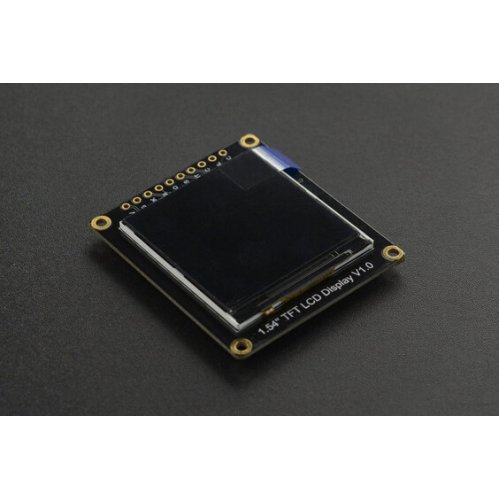

This display module features high resolution, low power consumption, wide-angle and easy wiring. With a small size of 1.54inch, it offers 240x240 resolution. The module employs the IPS screen, which performs excellently in the view angle (80/80/80/80). It supports SPI(4-wire) communication mode and GDI port (work with main-controllers with GDI port), plug, and play.

The 1.54inch LCD module can be powered by 3.3V~5V, and the maximum power consumption is about 24Ma. It is compatible with multiple main-controllers like UNO, Leonardo, ESP32, ESP8266, FireBeetle M0, etc. When working with M0, the GDI interface should be used, which could effectively reduce wiring steps.

Note: MicroSD Card is not included.

Features:

• Wide Angle of View
• High Resolution
• GDI Interface: plug and play

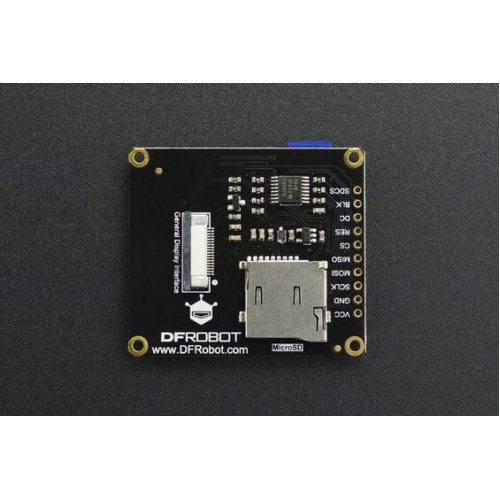

• Onboard MicroSD card slot

Specifications:

• Operating Voltage: 3.3V~5V
• IPS Angle of View: 80/80/80/80
• Color Depth: 16-bit (RGB565)
• Pixels: 240 × 240
• Connection Port: SPI
• Driver Chip: ST7789
• Brightness: 250 (Typ) cd/m2
• Full-screen Power Consumption: about 17mA(3.3V) 17mA(5V)(Typ)
• Operating Temperature: -30℃~+70℃

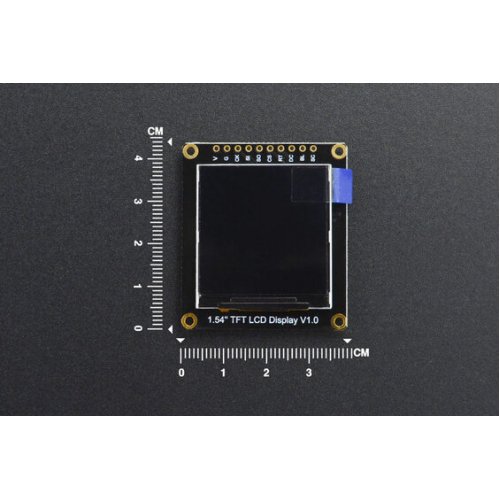

• Display Area: 27.72×27.72 mm
• Mount Hole Diameter: 2mm
• Weight: 19g

Applications:

• Wearable devices
• MP3/MP4
• Weather Display

Documents:

• Product wiki

Warranty: 90 days

• Warranty will not apply if Product fails or is damaged after delivery to you due to accident, abuse or misuse.

Package Includes:

• 1 x 1.54inch 240x240 IPS TFT LCD Display with MicroSD Card Breakout
• 1 x 2.54-10P Single-row Black Pin
• 1 x FPC0.5-18PIN Flex Flat Cable Reverse Direction 10cm
